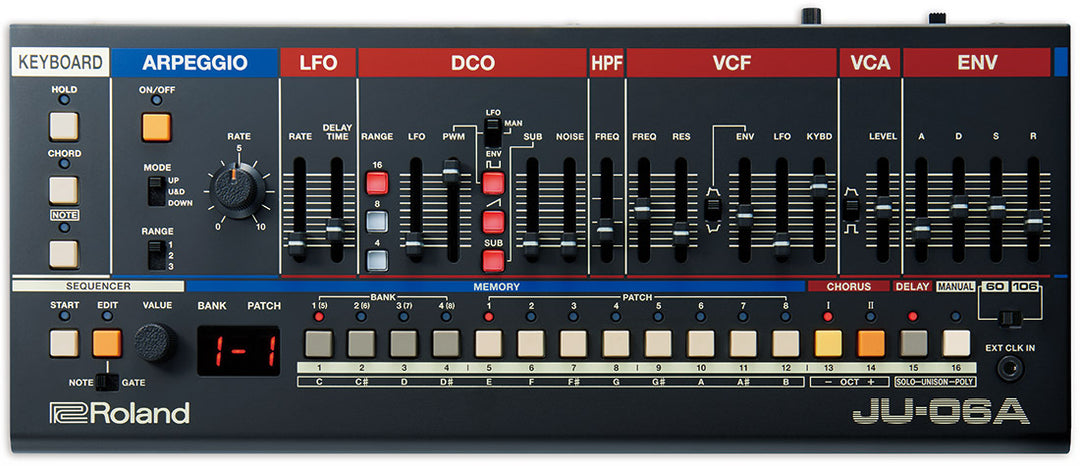

Boutique version of the Roland Juno 106 and Juno 60

SPECIFICATIONS

Sound Generator SectionMaximum Polyphony: 4 voices
Sound Mode: 2 types (60/106)User MemorySound Patch: 64 + 64 (8 patches x 8 banks pre each 60 and 106 mode)
Sequencer Pattern: 16
Chord Memory: 16Controllers VOLUME knob

LFO Section
RATE slider
DELAY TIME slider

DCO Section
RANGE buttons 16', 8', 4'
LFO slider
PWM slider
PWM mode switch
SQUARE, SAW, SUB buttons
SUB oscillator slider
NOISE slider

HPF Section
CUTOFF FREQ slider

VCF Section
CUTOFF FREQ slider
RESONANCE slider
Polarity switch
ENV slider
LFO slider
KEY FOLLOW slider

VCA Section
Control signal switch
VCA level slider

ENV Section
Attack Time slider
Decay Time slider
Sustain Level slider
Release Time slider

CHORUS Section
CHORUS 1, CHORUS 2 buttons

DELAY Section
DELAY button

KEYBOARD Section
HOLD button
CHORD button
NOTE button

ARPEGGIO Section
ON/OFF button
MODE switch (UP/U&D/DOWN)
RANGE switch (1/2/3)
RATE knob

SEQUENCER Section
START button
EDIT button
VALUE knob
NOTE/GATE select switch

Sound Mode select switch (60/106)
BANK 1 (5)–4 (8) buttons
PATCH NUMBER 1–8 buttons
MANUAL button

Power switch Effects Chorus: 2
Delay Step Sequencer 16 steps
1 note (Monophonic)Display7 segments, 3 characters (LED)ConnectorsEXT CLOCK IN jack: Mono miniature phone type
PHONES jack: Stereo miniature phone type
OUTPUT jack: Stereo miniature phone type
MIX IN jack: Stereo miniature phone type
MIDI (IN, OUT) connectors
USB port: MicroB type (Audio, MIDI)Power SupplyNi-MH battery (AA, HR6) x 4
Alkaline battery (AA, LR6) x 4
USB bus power Current Draw500 mA (USB bus power)Expected battery life under continuous useNi-MH battery: Approx. 6 hours
* This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.AccessoriesOwner's Manual
Leaflet "USING THE UNIT SAFELY"
Alkaline battery (AA, LR6) x 4Options (sold separately)Keyboard unit: K-25m
Boutique Dock:DK-01SIZE AND WEIGHTWidth300 mm
11-13/16Depth128 mm
5-1/16 inchesHeight49 mm
1-15/16 inchesWeight (including batteries)995 g
2 lbs 4 oz
