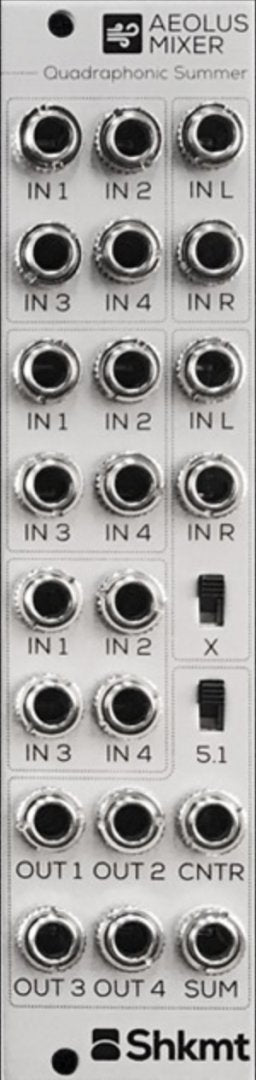

The Aeolus Mixer is a quadraphonic unity mixer allowing you to sum up to 3 quadraphonic sources and 2 stereo sources, in 6 hp!
The module has additional outputs for 5.1 systems compatibility and clever options for crossing the stereo channels, and more.
Features
• Quadraphonic unity mixer
• 3 quadraphonic inputs with mono and stereo normalisation
• 2 stereo inputs with mono normalisation
• Cross switch on the second stereo input allowing stereo crossing in the quadraphonic space
• 5.1 compatible outputs thanks to the center and sum output in addition to the four main outputs
• Jumpers on the back on the module for gain reduction
• 6 hp wide
- Dimensions
- 6 HP
- 40 mm deep
- Current Draw
- 20 mA +12V
- 20 mA -12V
