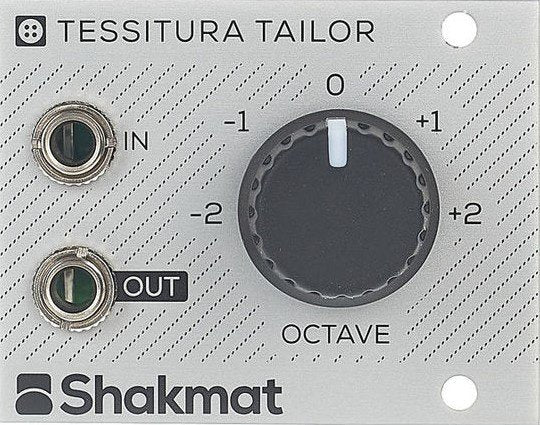

SHAKMAT MODULAR TESSITURA TAILOR 1U OCTAVE SWITCH

SHAKMAT MODULAR TESSITURA TAILOR 1U OCTAVE SWITCH

SHAKMAT MODULAR TESSITURA TAILOR 1U OCTAVE SWITCH

Regular price $79.99
/
  • Free shipping over $99 to most states
  • Easy returns
  • Secure payments
  • In Stock
Made-to-measure Pitch

The Tessitura Tailor adds or substracts a precise voltage (from -2 to +2 volts) to the signal received at the CV input. This signal is transposed by octaves, depending on the rotary switch’s position. As the CV input is normalised to 0 volt, the module works without any input as an octave switch.



Features

• Switchable CV transposer/generator

• Stepped potentiometer allowing transposition from -2 to +2 octaves

• Precison trimmer at the back of the module for fine-tunning.

• Skiff friendly (25mm deep)

• Intellijel and Pulp Logic format supported

• 1U — 10hp



Dimensions
10 HP
25 mm deep

Module is a 1U tile.

Current Draw
10 mA +12V
10 mA -12V
0 mA 5V
