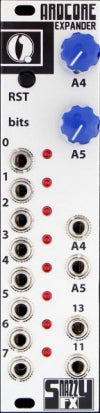

expansion module for ArdCore

the RESET BUTTON really helps with COMPOUND SKETCHES!

The NEW OUTS< allow interesting things...11 and 13 both have RC filters.

MANY MANY arduino sketches default to pin 3 or 11 (timer2) as the OUT...so with this, all you have to do is make sure your out is Pin 11 and away you go! there are many options with having 2 more outputs

PLUS the NEW CV INS are BI POLAR INPUTS!! AWESOME FOR ANY SITUATION WHERE YOU WANT THE NEGATIVE SWING OF YOUR WAVEFORM TO GET CAPTURED WITHOUT HAVING TO OFFSET IT FIRST!!

what else...WELL? THE GATE/TRIG OUTS ARE ALL 10V capable! SO you won't have to worry that some VCA's wont open!

This expander has a good amount of buffering, filtering, and regulation circuitry. Everything is really solid.
