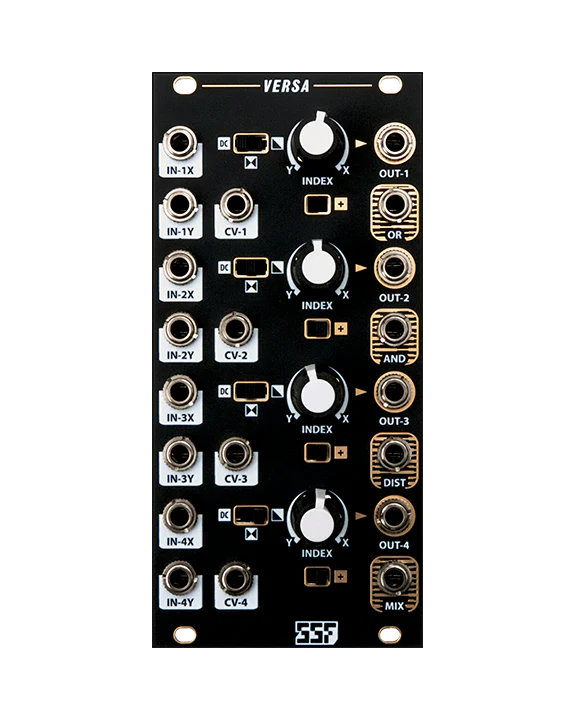

STEADY STATE FATE VERSA

VERSA is a quad, multi-mode Audio and Control Voltage VCA. Using all discrete analog VCAs and crafty signal routing, each of the VERSA's four channels can perform the following voltage controlled operations:

• Bipolar offset generation +/-5V
• Crossfading between an external signal and +5V or -5V
• Linear crossfading of two external signals
• 4-Quadrant Multiplication/Polarization/Ring Modulation
• 2 Input, 1 Output VCA switch
• Standard VCA

VERSA is DC-coupled - suiting use for both Audio and Control Voltages.

4-Quadrant Multiplier mode features an ample 'dead zone' to insure zero signal bleed when full attenuation is desired.

An additional four signal output buss' offer the following mixed signal functionality;

• Analog OR (MAXIMUM)
• Analog AND (MINIMUM)
• Fold-Back Limit Distortion (DIST)
• Full scale MIX of all channels

A handy switch is provided for each channel to add or remove a signal from the buss outputs.
