A Perfect Gentleman — From a Classic Era.

The magical combination of tremolo and reverb is the earliest example of a perfect guitar effects marriage. First pioneered within historic amplifiers of the 1960s, this harmonious coexistence has made it's way onto countless records and performances—from early surf, swampy bayou blues, spaghetti westerns, film noir soundtracks, to modern day indie rock. There are certain things in life that just belong together—the blend of tremolo and reverb create the perfect pair.

Given this storied history, there was no doubt that we wanted to develop a studio-class effects pedal that delivers this classic combination. We carefully studied our favorite classic tremolo and reverb circuits, examined the sonic complexities, and faithfully accounted for every detail in our hand-crafted algorithms. Flint harnesses the complete power of a SHARC DSP to authentically exhibit these details.

Flint gives you the soothing, pulsating, and hypnotic effects that were pioneered in vintage amplifier tremolo circuits, along with three classic and completely unique reverb algorithms. You get the sonically complex '61 Harmonic Tremolo, the swampy and sultry '63 Power Tube Tremolo, and the sharp and balanced '65 Photocell Tremolo. You also get the classic '60s Spring Tank Reverb, the inventive '70s Electronic Plate Reverb, and the nostalgic '80s Hall Rack Reverb.

With eight parameters to tweak, you get extensive control over the tremolo and reverb characteristics. Go from splashy, pulsing twang, to throbbing, swampy blues, all the way to ambient, trembling, and serene reverberated pads. Couple that with true bypass, and a high quality analog front end and output section, and you have yourself the history of tremolo and reverb in a pedal-board friendly format.

Sound Design

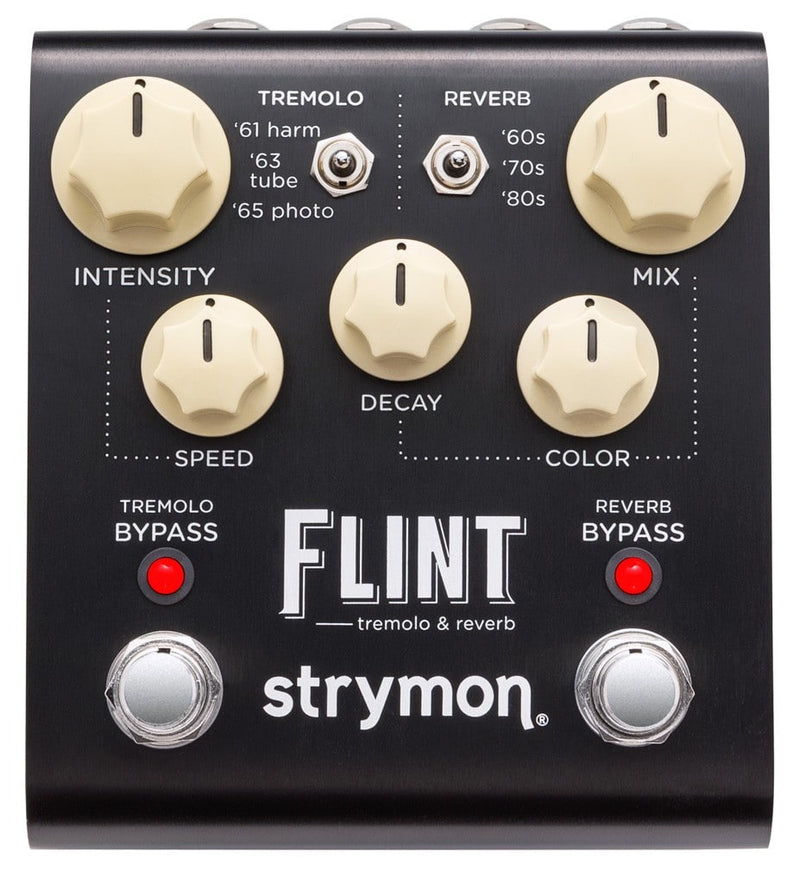

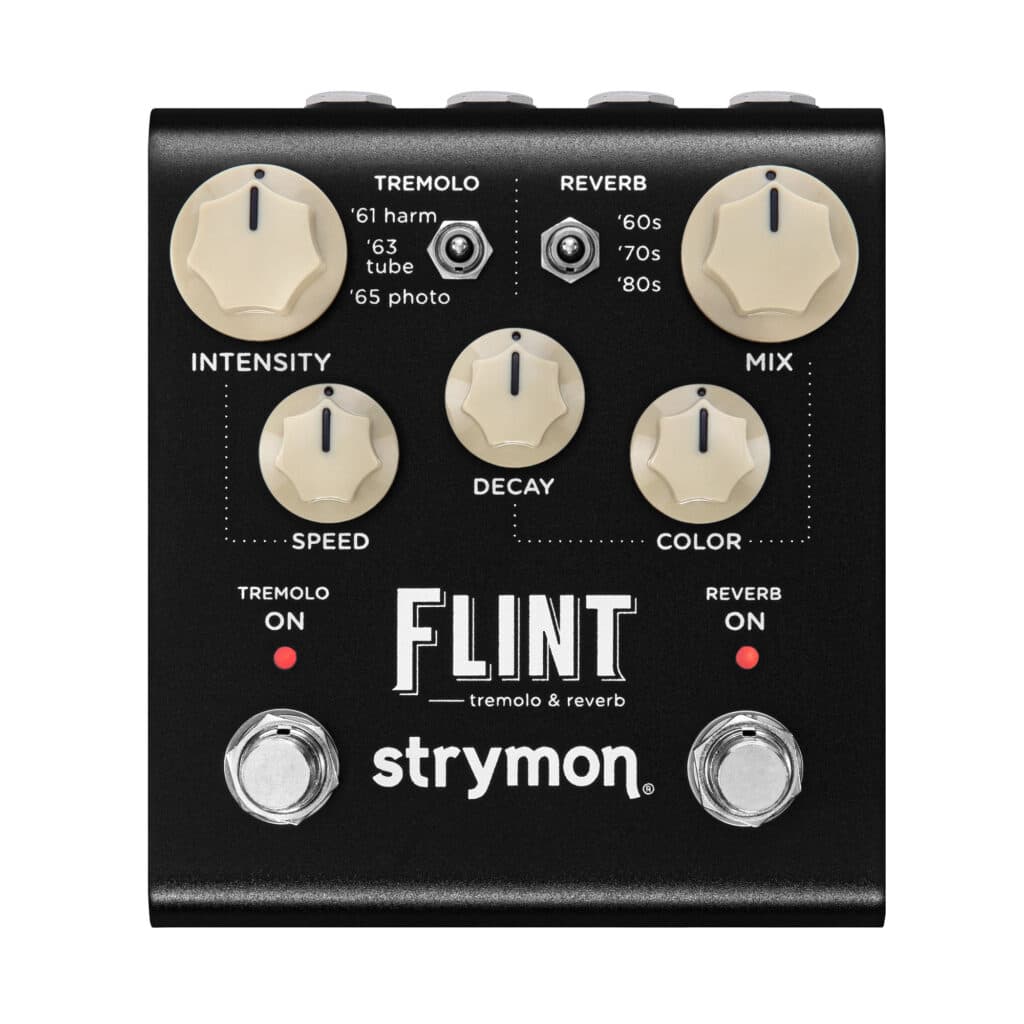

• Three hand crafted tremolo algorithms faithfully deliver classic tremolo experiences:
  '61 Harmonic Tremolo, '63 Power Tube Tremolo, '65 Photocell Tremolo
• Three distinct reverb algorithms:
  '60s Spring Tank Reverb, '70s Electronic Reverb, '80s Hall Rack Reverb
• Two tremolo adjustment and tone shaping knobs: Intensity, Speed
• Three reverb adjustment and tone shaping knobs: Decay, Color, Mix
• Four "hidden" knobs for extensive tone tweaking:
  Tremolo Boost/Cut, Reverb Boost/Cut, Effect Order, Tap Subdivision

Ins, Outs & Switches

• High impedance mono input (internal jumper enables selectable TRS stereo input)
• Stereo output
• Tremolo Bypass and Reverb Bypass footswitches
• Expression pedal input allows the connection of either an expression pedal (for selectable control over any knob parameter), external tap pedal (for remote tap tremolo), or Favorite switch (to save a Favorite preset)

Audio Quality

• Super low noise, high performance 24-bit 96kHz A/D and D/A converters
• 115db typical signal to noise
• +8dBu maximum input level easily handles instrument and line signals
• 20Hz to 20kHz frequency response
• Premium analog front end and output section
• Analog dry path (when Reverb only is engaged)
• Super high performance DSP in a compact form factor
• 32-bit floating point processing

More

• True Bypass (electromechanical relay switching)
• Selectable "trails" mode with high quality Analog Buffered Bypass
• Adjustable +/- 3dB boost or cut when effect is engaged
• Powered with a standard 9V center negative DC supply, 250mA minimum
• Strong and lightweight black anodized aluminum chassis
• Crafted with love in the USA

Vintage Sound, New Features.

Our second generation Flint gives you the same gorgeous tremolo and reverb sounds from our original and adds significant new features, incorporating technological advancements, hardware improvements and design enhancements to give you additional flexibility, power, and ease of use on stage and in the studio.

MIDI



Full MIDI implementation means you can control just about every switch, knob, and setting remotely by sending MIDI commands from your controller or DAW via Flint’s EXP/MIDI jack or USB-C connection.

Tremolo speed can be synchronized via MIDI Clock Sync, and the sync setting can be saved for each preset.

300 MIDI preset locations are available for loading and saving your favorite settings.

Hardware Improvements

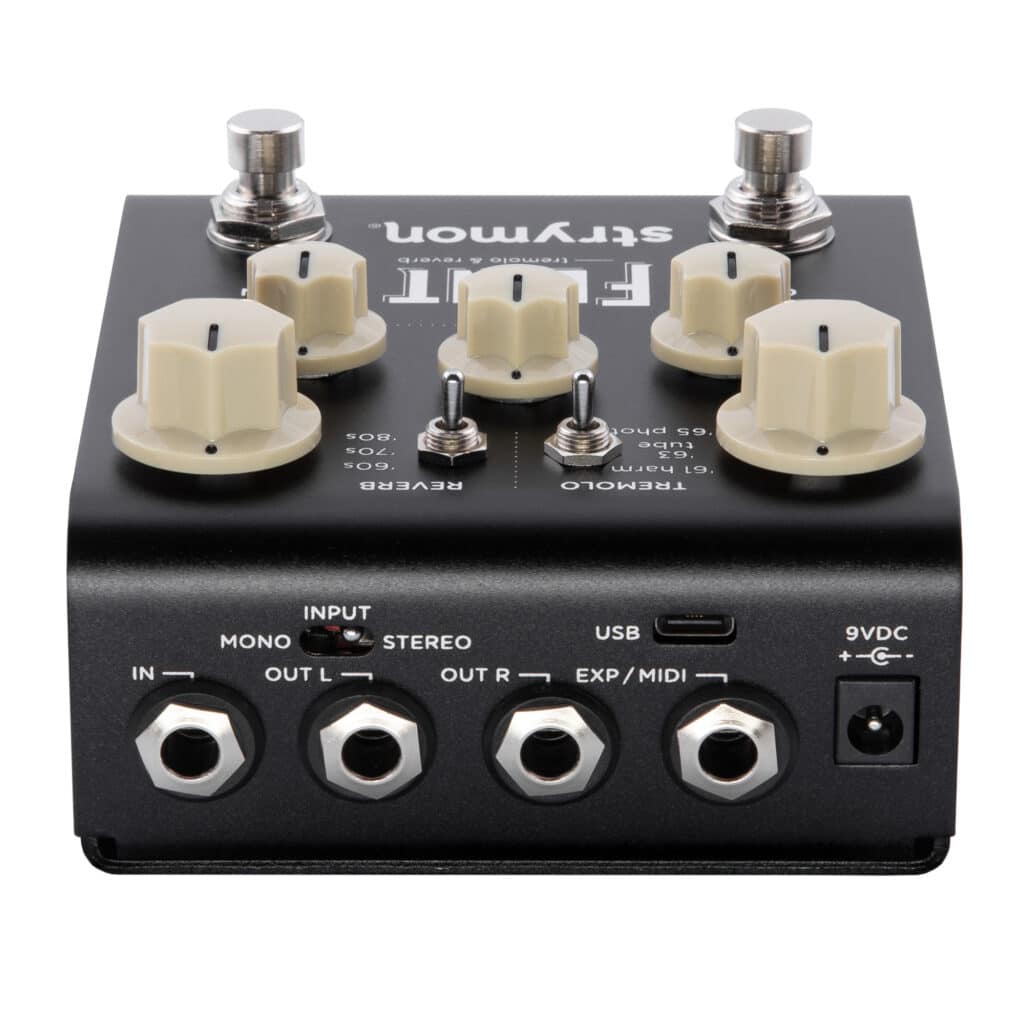

A premium analog JFET input circuit ensures superb responsiveness to your playing, and you can select mono or stereo input with the flick of a rear panel switch.

All this, plus a new ARM DSP chip provides more processing power for every sonic nuance, with less energy consumption on your pedalboard.

Extended Control



Love slow tremolo?

The Speed knob range has been expanded to slow the tremolo down to nearly 1Hz at its minimum setting.

On the reverb side, pre-delay time is now adjustable.
