STRYMON TIMELINE MX
The Next Generation
The most powerful delay pedal ever.
TimeLine MX delivers stunning studio quality delays and a host of new professional features in an elegant and intuitive stage-ready design. Every sound is carefully tuned to react musically to your playing, and every control has been calibrated for an intuitive feel and response. From classic echoes dripping with vintage vibe to captivating and modern sounds that push the envelope, TimeLine MX is full of fresh inspiration.
Time Machine From The Future
TimeLine MX delivers an extraordinary combination of premium features in a single pedal.
>12 World-Class Delay Machines
TimeLine MX features new Oil Can, Spectral, Drum, Reverb and MultiTap engines in addition to significant enhancements to the other classic TimeLine delay machines.
>Two Effects At Once
Dual delays can be routed in Series, Parallel or Split modes, and individually panned per engine.
> Five Minute Stereo Looper
TimeLine MX features an integrated Stereo Looper with selectable multi or 1 Button Looper modes. The looper can be placed before or after the delay effects, and in 1 Button Mode it can be used on the fly without switching to Looper mode.
> Reverb Plus Delay
In addition to 11 delay engines, a stellar new reverb engine is included, allowing TimeLine MX to be your all-in-one delay plus reverb pedal.
> Full MIDI Control And More
Change presets and control parameters with MIDI via USB-C, TRS, or DIN connections. Access the looper controls (including reverse, redo and half speed) without entering Looper mode. Adjust controls via an expression pedal while you play. All this and more in an elegant and easy-to-use pedal.

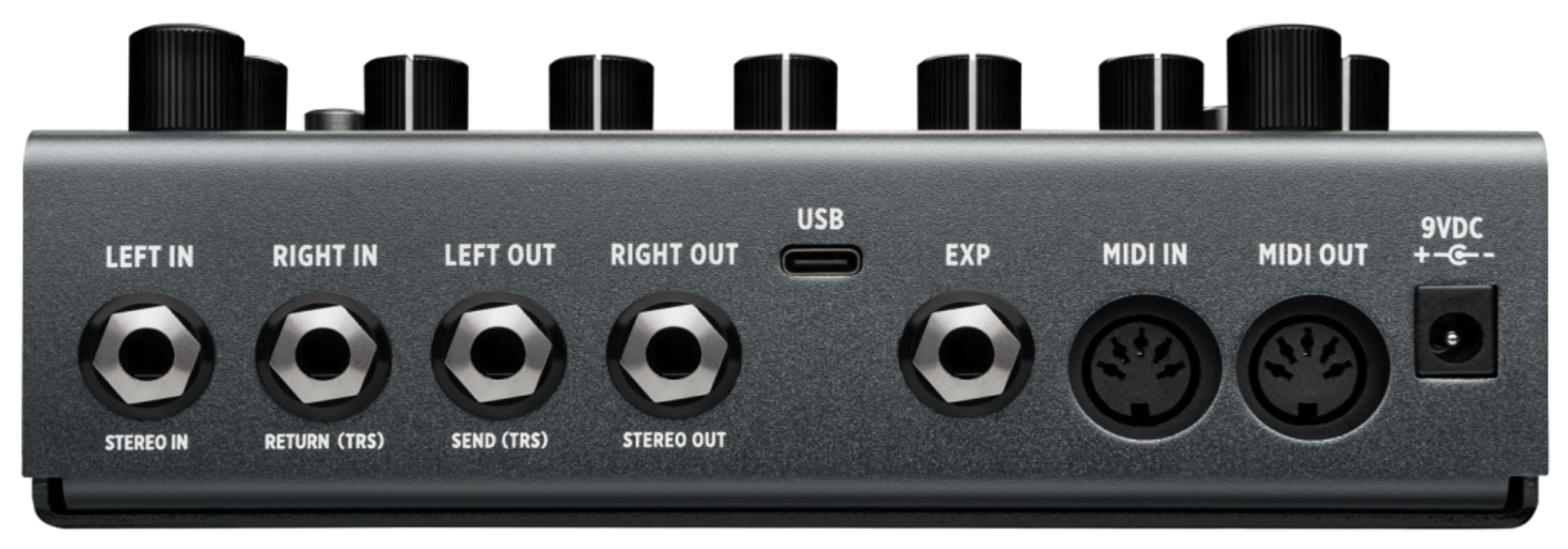

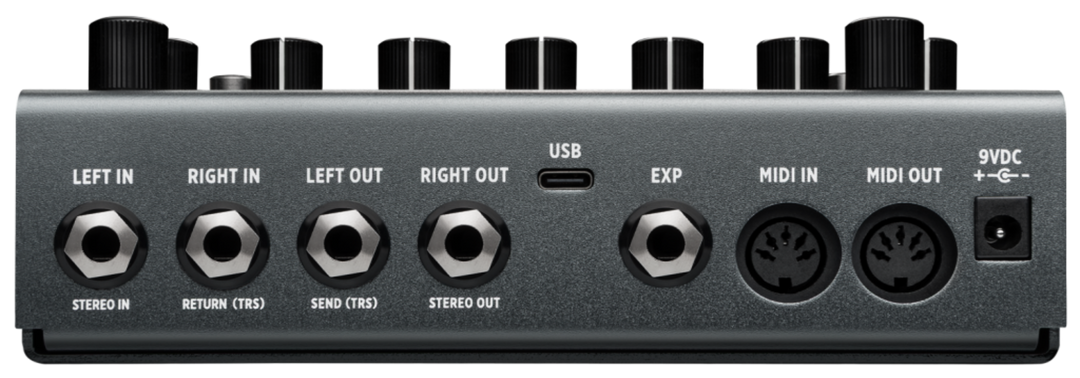

> Stereo Input/Output Plus Stereo Send and Return
All jacks are TRS stereo providing selectable I/O configurations for any professional setup, including stereo or mono effects send/return, wet/dry, and wet/dry/wet.
Features
Ready To Play

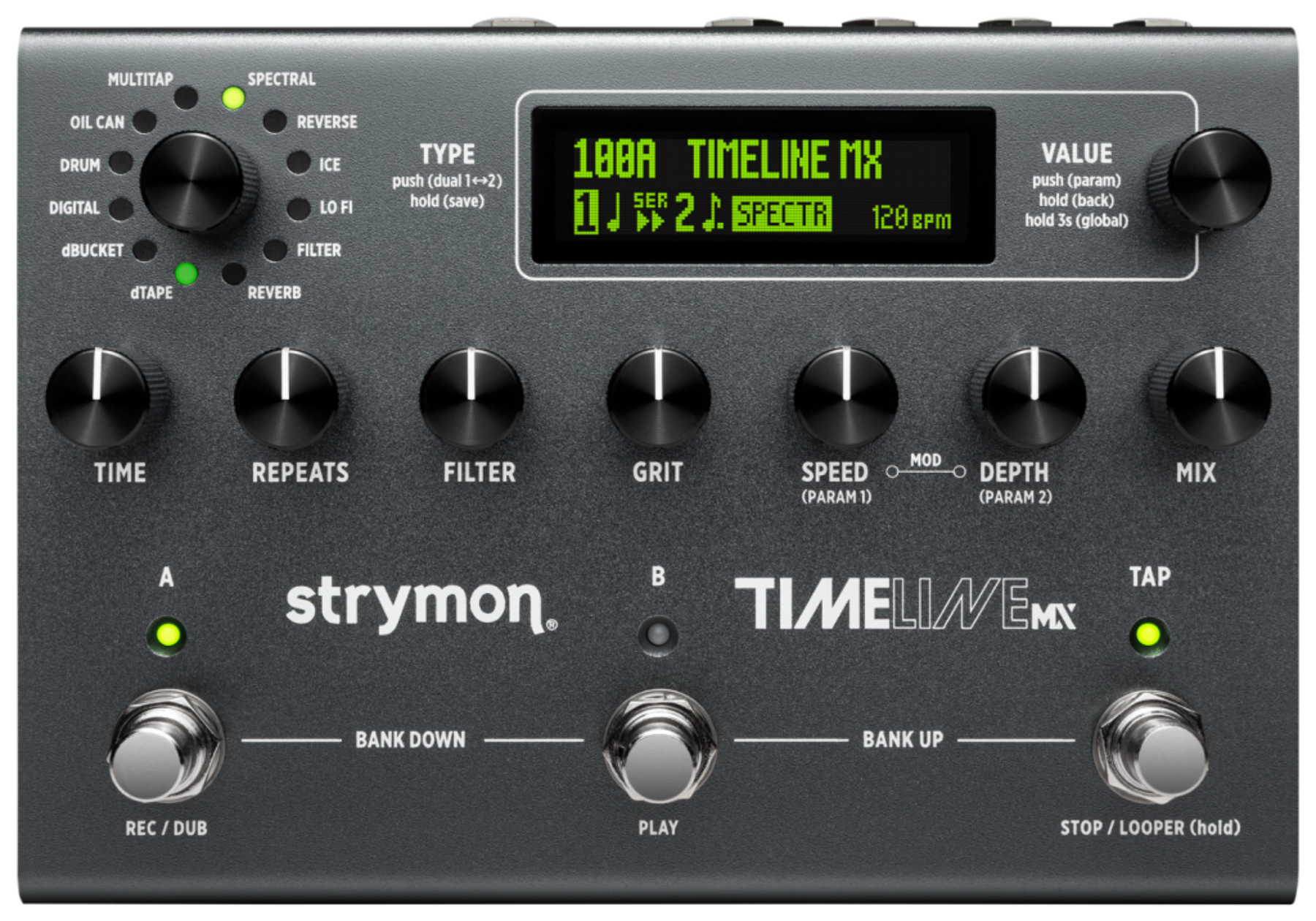

Our most powerful delay pedal ever is also our most flexible onstage, combining intuitive operation with features professional musicians will appreciate. The bright OLED screen is easy to read even in harsh conditions, and navigation is user-friendly and clear. You can use the dedicated Tap Tempo footswitch to ensure that you’re in time with the rest of the musicians onstage as well as to control the one-button looper, and you can also control each machine separately in a Dual patch with your feet. Full MIDI control over every relevant parameter and extensive I/O including a hardware effects loop mean TimeLine MX can easily integrate into any rig.
Upcoming Nixie 2 Compatibility
Unleash the full power of TimeLine MX with Nixie 2. Create and edit presets, tweak every setting in real time, and hear your changes instantly. Back up your favorite sounds with a click so you never lose that perfect patch. Nixie 2 also lets you connect and control multiple supported Strymon pedals in one streamlined platform, so you can edit your whole rig from one place.
- Stereo input & output
- Switchable I/O configurations for normal, mono or stereo effects loop, wet/dry, and wet/dry/wet
- Dedicated TAP footswitch for setting Delay Time and accessing 1 Button Looper
- Infinite repeats for delay feedback effects and infinite reverb sustain (press and hold the lit A or B footswitch on the current preset)
- Premium analog circuits with discrete JFET input preamp and low impedance output section
- Selectable input level for instrument and line level signals
- Analog dry path for a zero-latency dry signal that is never converted to digital
- True Bypass (electromechanical relay switching) or selectable Buffered Bypass
- EXP input allows the connection of an optional TRS expression pedal, MultiSwitch, MultiSwitch Plus, or TRS MIDI connection
- USB-C jack can be used for performing firmware updates, for MIDI I/O, and for upcoming Nixie 2 editor compatability
Audio Quality
- Input Impedance: 1 Meg Ohm
- Output Impedance: 100 Ohm
- A/D & D/A: 24-bit, 96 kHz
- Max Input Level: +10 dBu
- Signal/Noise: 116 dB typical
- High-performance 800MHz tri-core ARM processor
- 32-bit floating point processing
Power Requirements
- Use an adapter with the following rating: 2.1mm, center-negative, 9VDC, 500mA minimum (sold separately)
