LEVELS is a versatile, low-noise six channel summing mixer/attenuator for audio and CV, which can be used rather effectively in a variety of ways: 6 in 1 out, or two separate mixers: 4 in 1 out, and 2 in 1 out, e. g., when only jacked-in to MIX 5/6 output all input channels pass through; utilizing the 1-4 OUTremoves channels 1-4 from the MIX 5/6 output. Handy indeed.

The pots are wired with a logarithmic volume curve that is tuned for use with audio but it will work splendidly with CV as well. Pressing¬†LEVELSinto service as a wave-shaper by patching all of the individual¬†OSCILLATION¬†waveform outs (sub, sine, tri, saw, ramp, square) into¬†CHANNEL¬†inputs 1-6, makes for vivid beguiling shapes‚ÄĒa morphable hybrid waveform of your innermost sound designs. Consider pairing the two Modstar modules when building your system.

Potentiometer Potential

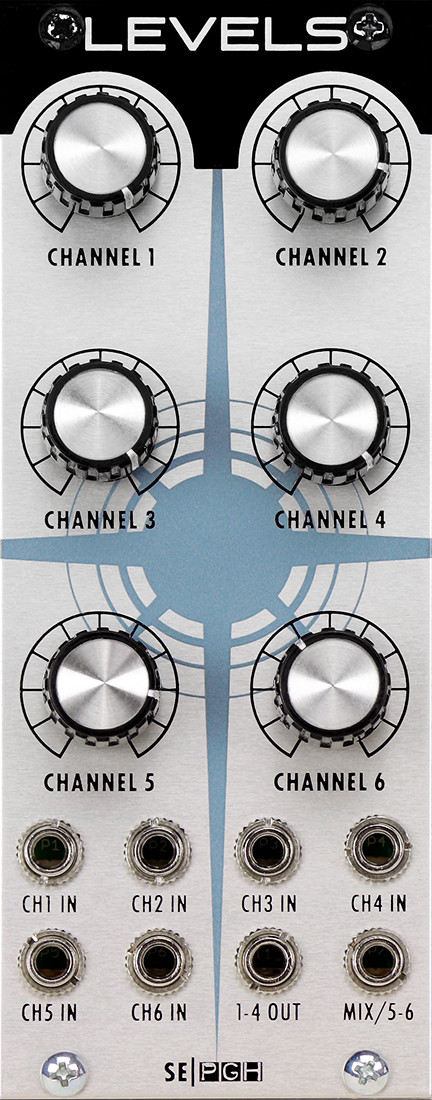

Six attenuation pots control  CHANNEL 1, CHANNEL 2, CHANNEL 3, CHANNEL 4, CHANNEL 5, and CHANNEL 6.


Patch it Up
Eight patch points: CH1 IN, CH 2 IN, CH 3 IN, CH 4 IN, CH 5 IN,
CH 6 IN, 1-4 OUT, MIX/5-6.

All Controls and Patch Points
CHANNEL 1¬†‚ÄstAdjusts the level or value of 1.¬†
CHANNEL 2¬†‚ÄstAdjusts the level or value of 2.
CHANNEL 3¬†‚ÄstAdjusts the level or value of 3.
CHANNEL 4¬†‚ÄstAdjusts the level or value of 4.
CHANNEL 5¬†‚Äď Adjusts the level or value of 5.
CHANNEL 6¬†‚Äď Adjusts the level or value of 6.
CH 1 IN¬†‚Äď Channel 1 input.
CH 2 IN¬†‚Äď Channel 2 input.
CH 3 IN¬†‚Äď Channel 3 input.
CH 4 IN¬†‚Äď Channel 4 input.
CH 5 IN¬†‚Äď Channel 5 input.
CH 6 IN¬†‚Äď Channel 6 input.
1-4 OUT¬†‚Äď Channels 1-4 output.¬†
MIX/5-6¬†‚Äď All channels output (MIX), or¬†5-6¬†when cable is plugged into any of the 1-4 channel inputs.

Vitals
Size - 10hp
Depth - 39.7mm with ribbon cable attached
Power Usage - 22mA (+12 / -12)
