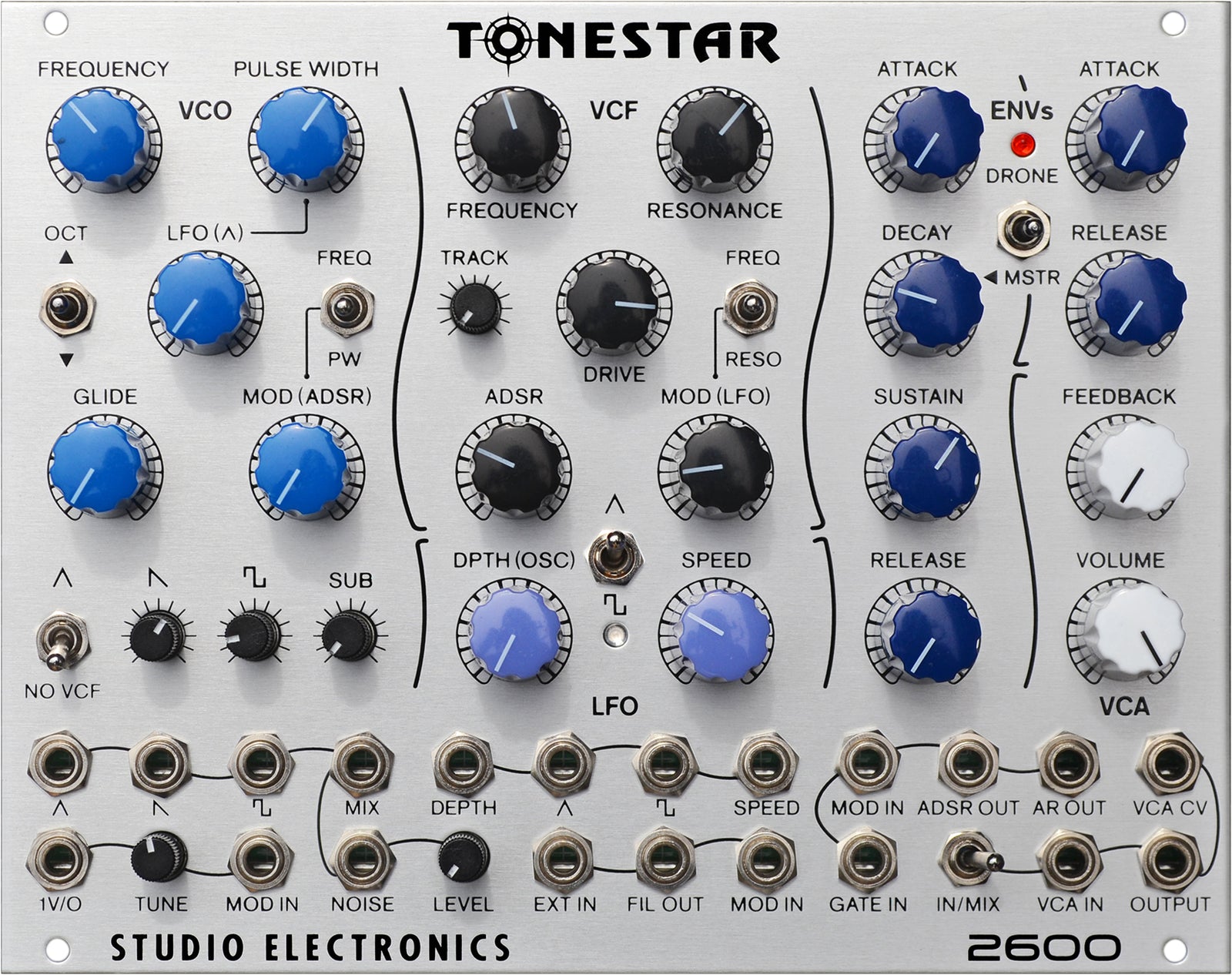

26 Knobbed and "Shafted" Potentiometers
VCO: FREQUENCY,
PULSE WIDTH,
LFO (^),
GLIDE,
MOD (ADSR),
SAW*,
SQUARE*,
SUB,
TUNE;
Noise: LEVEL;
VCF: FREQUENCY,
RESONANCE,
TRACK,
DRIVE,
ADSR,
MOD (LFO);
LFO: DEPTH (OSC),
SPEED;
ENVs: (ADSR) ATTACK,
DECAY,
SUSTAIN,
RELEASE,
(AR) ATTACK,
RELEASE;
VCA:FEEDBACK (filter),
VOLUME
* symbol
7 Switches
VCO: OCT (up/down),
FREQ/PW,
NO VCF;
VCF: FREQ/RESO;
LFO: TRIANGLE/SQUARE*;
ENVs:DRONE,
MASTER;
VCA: IN/MIX
VCO: TRIANGLE*, SAWTOOTH*, SQUARE*, MIX, 1V/O, MOD IN; NOISE: NOISE (white); LFO:DEPTH, TRIANGLE*, SQUARE*, SPEED; VCF: EXT IN, FIL OUT, MOD IN; ENVs: MOD IN, ADSR OUT,AR OUT, GATE IN; VCA: IN/MIX, VCA IN, OUTPUT
Vitals
PCB Mounting Scheme - Through-hole.
Filter - Discrete, voltage controlled, 24/db/oct cascaded transconductance low-pass filter, employing six pairs of hand-matched transistors.
Size - 32hp.
Depth - 35mm including connectors.
Power Usage -
Optional DIY Adjustments
The tweaking and fine tuning process of a new SE offering can be seemingly endless. Many of the decisions we make are akin to choosing between chocolate, or chocolate with almonds (Fair Trade Organic of course), both tasty and worthy of consumption. At a certain point you have to step away and let your little baby go—but sometimes after flipping back and forth on preferences, we implement a few minor changes after the official production release. The following tweaks fall into the subjective "with or without nuts" category:
Units #2-15 / Noise - The noise on the Tonestar leans to the Pink side, a little dark and moody. Some may like it, some may want the more bright and sizzled white variety. One resistor or capacitor change will shift it to the white spectrum.
Units #2-22 / Feedback - The Feedback loop is big, bold and deep on the low end; maybe a bit too much so. One resistor change will reign it in, but still allow enough chaotic madness at maximum level.
