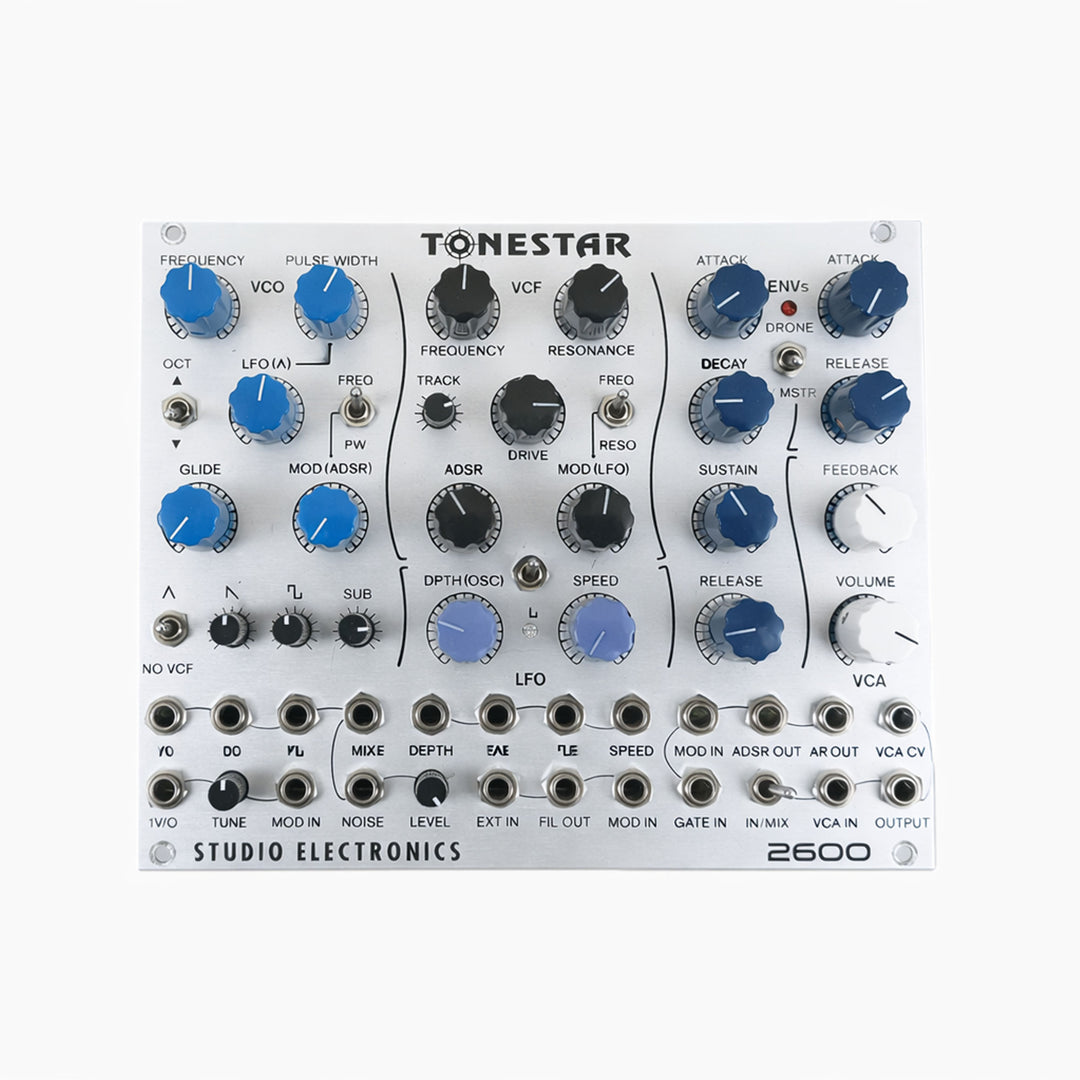

TONESTAR 2600 is an ARP® 2600-inspired synth voice 31 years in the shaping, pre-patched like Pearlman's prodigy, and fully #OutsToOutsmodular, allowing for highpass/bandpass/notch filter tones, and bristling X-mod effects. Connect CV / gate and twist 'n' switch, or pull its tones and voltages apart one 3.5mm cord at a time. 26 knobs, 7 switches, and 21 jacks make for complex and satisfying signal flow, color and collisions. If it gets reedy, route the triangle wave 'round the VCF, and keep it boomin'. See the Outs-to-Outs / Interesting Patches .pdf for a demonstration of awaiting creations.
- Premium Quality Analog® pre-patched and fully modular all hardware synth voice.
- 26 knobs 7 switches 21 patch points in a daring yet ergonomic 32hp config.
- Eight octave ARP®, Oberheim® and Moog® styled Oscillator, with sub OSC, octave control, waveform mixing, triangle direct to VCA.
- LFO/ADSR modulation of pulse width with dedicated triangle wave for warming/chorusing effects.
- 24/db/oct cascaded transconductance low-pass filter with 6 pairs of hand-matched transistors (think "Orange and Black ARP® 2600).
- Input drive control, variable tracking, and voltage-controlled resonance - four pole ARP® 4072 magic, sans the 12kHz cutoff flaw.
- Classic ADSR/AR Envelope with original 2600 "sustain sink" behavior to keep it movin'
- Ultra wide-ranging voltage controlled LFO with input speed control.
- Drone: Instant infinite sustain, and Master mode: ADSR controls both filter + amplifier envelope (Juno 106 inspired)
-
FEEDBACK! Harmonic generating/multiplying Oscillator/Filter Feedback loop manipulation
- White Noise Generator and External Audio Input patching with native tonal blending
- Legendary 31 year-perfected Through-Hole build quality and supreme sound-COMPARE!
