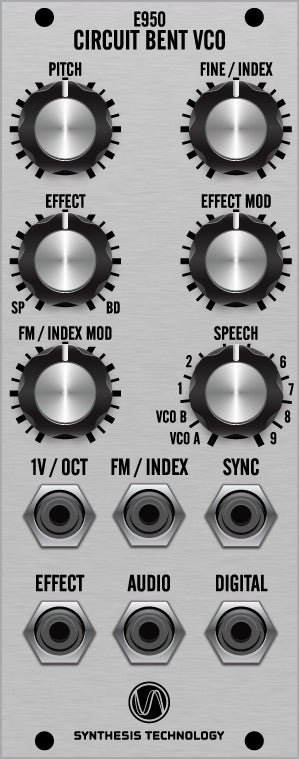

The E950 is a 10HP DSP-based VCO that combines the famous "smooth morphing"

of the E350 Morphing Terrarium with fully licensed 'Speak & Spell'

technology from Texas Instruments.



The E950 has 4 banks of speech ROM data, which is provided by Texas

Instruments under an exclusive license agreement. The E950 then applies

proprietary 'bending' algorithms to behave exactly as a standard "bent"

Speak & Spell and then extends them to real-time modulation of the internal

lattice filter coefficients, something that cannot be done normally.



SPECS

Height	3U (128.5mm)
Width	10hp (70.8mm)
Depth	TBD
Power	+-9V to +-15V Power supply current (typical): -12V @10ma and +12V @ 48ma
CV input range	10Vpp (-5V to +5V), DC to 8KHz
Audio Ouput	7.5Vpp, 12 bit 96 KHz sample rate with 3-pole linear-phase LPF at 18 KHz cutoff
