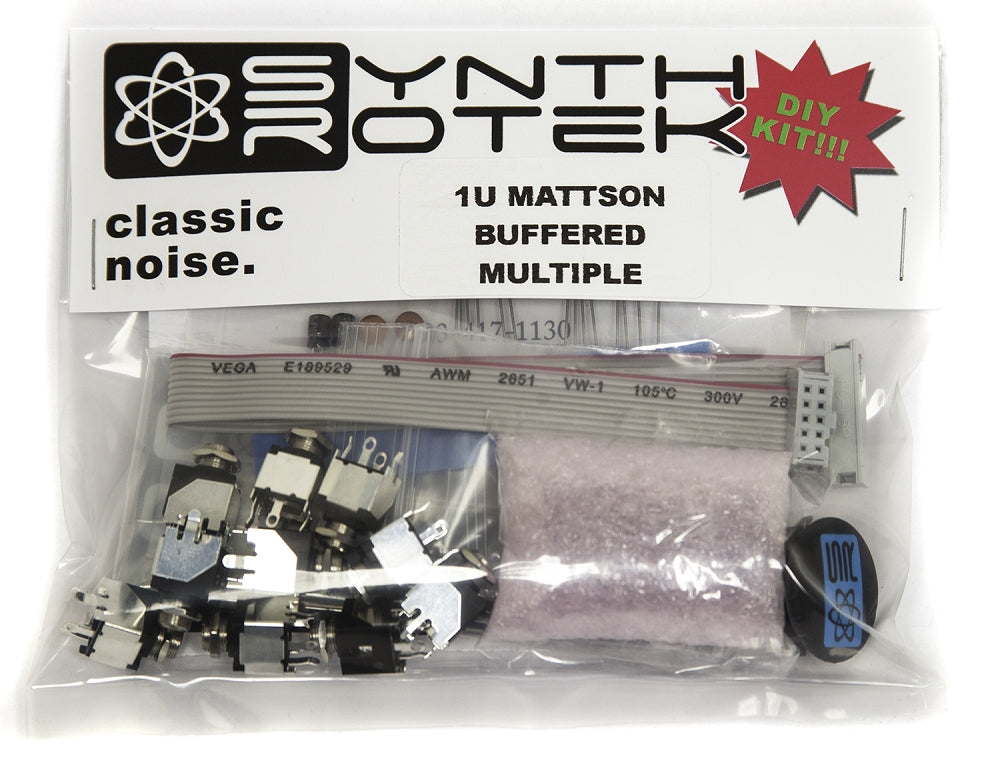

SYNTHROTEK 1U BUFFERED MULTIPLE DIY KIT

The 1U Mattson Buffered Multiple is a PRECISION buffered mult that is perfect for 1V/O CV sources. A signal plugged into INPUT A will be available from all 8 OUTPUTS. Break the chain by adding a second signal into INPUT B; signal A comes out the 4 "A" outputs and signal B is available at the 4 "B" outputs.

Features:

• 4 Channels
• Channels 1 and 2 are 1 to 4
• Cascaded inputs: CH 1>CH 2

Specifications:

• Current draw: +12 18mA, -12 18mA
• Width: 20HP
• Depth: 32mm
