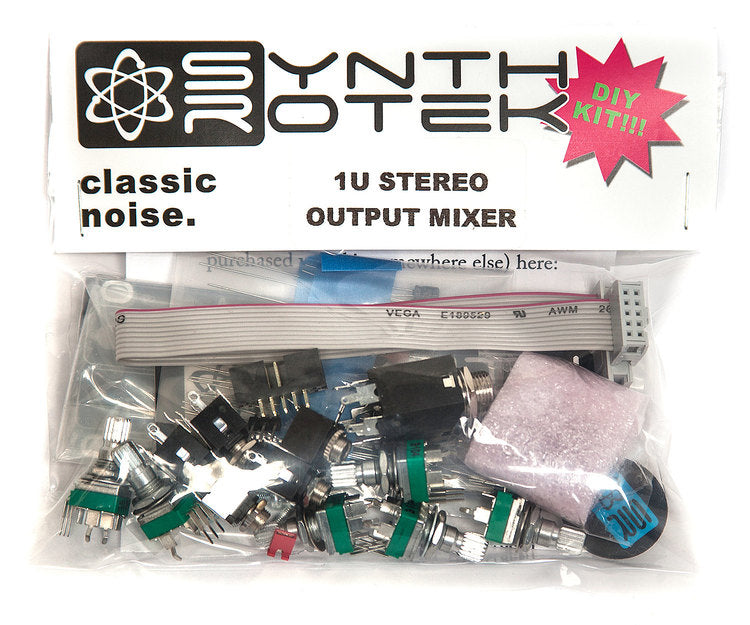

SYNTHROTEK 1U STEREO OUTPUT MIXER DIY KIT

The 1U Stereo Mixer is intended for pannable stereo output, but it is also suitable for both DC (Gates, Triggers and Control Voltage) & AC (audio) signals.



Features:

• 2 channels, 2 inputs per channel
• Jumper select ~unity gain or gain ~x2 (6db boost) amplification
• Mixes both AC signals (audio) and DC signals (gates, triggers, CV)
• Stereo output with panning per channel
• Attenuator and amplifier per channel
• 1/4î and 3.5mm (1/8î) output jacks

Specifications:

• Current draw: +12: 13mA, -12: 9.2mA
• Depth: 32mm
• Width: 24HP
