SYNTHROTEK 6U x 104HP POWERED HICKORY CASE

SYNTHROTEK 6U x 104HP POWERED HICKORY CASE

SYNTHROTEK 6U x 104HP POWERED HICKORY CASE

Regular price $475.00
/
  • Free shipping over $99
  • Easy returns
  • Secure payments
  • In stock, ready to ship

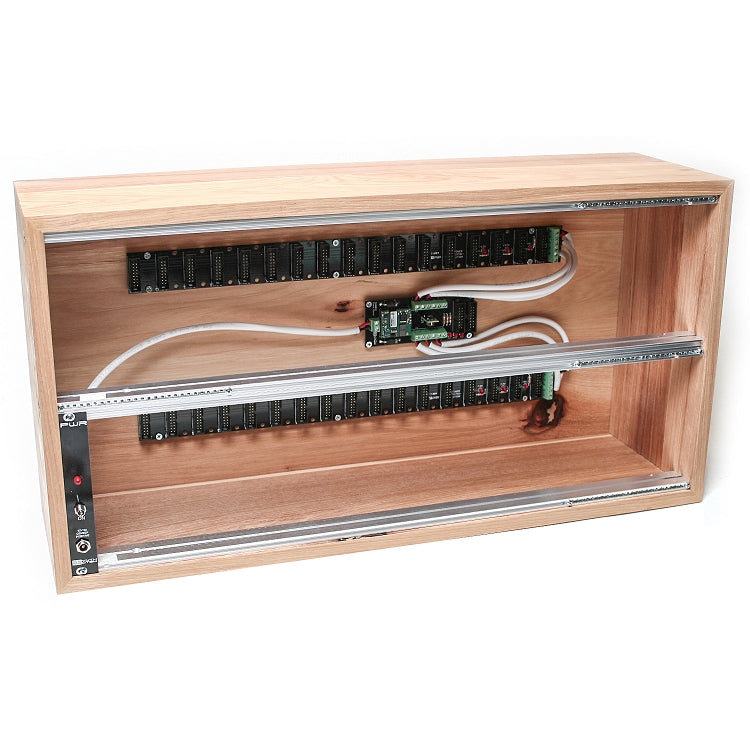

Synthrotek is proud to offer a line of modern-style wooden hickory plywood Eurorack cases. These cases are hand-crafted locally by Mr S. Gorton in Portland, OR. They are made with extreme care and attention to detail with high-quality furniture plywood. All materials have been procured in the U.S.A. Has a natural hand-sanded and oil finish.

Comes with 4 rubber foot pads for you to install if desired.  The rails come with nuts installed; 100 screws can be added for $5.

Exterior dimensions:  21 13/16 in. x 11 3/16 in. x 6 1/8 in.

Interior depth (front of module to back board without distribution boards): 5 3/4 in.


Includes 12V 5A power brick and 2 power distribution boards.  These boards will power 34 modules, which is enough for most rigs.  If you need some more power connections, flying bus cables are available for an additional cost.


Power supply info:

+12 @ 2.2A
-12 @ 1.3A
+5 @ 1.5A

Some specs:

Input Voltage Range: +12VDC +/-5%
Output Voltage: +12VDC / -12VDC / +5VDC

Max Output Current +12V:
+/- 5% regulation
2.2A Max
84% efficiency
Short Circuit Protection
FCC Class B
EN55022 Class B

Max Output Current -12V:
+/- 1% regulation
1.3A Max
84.5% efficiency
Extensive self-protection shut down features
Certified to UL 60950-1, CAN/CSA-C22.2 No.
60950-1, IEC60950-1, EN60950-1 safety approvals,
2nd edition

Max Output Current +5V:
+/- 4% regulation
1.5A Max
90.5% efficiency
Short Circuit Protection

PCB Dimensions: 4 1/16'' x 1 5/8''

Important note about the power supply brick:
- Power connector must have a 5.5mm sleeve and a 2.5mm interior barrel pin
- Power supply must be 12VDC, 5A and have a center positive pin
- Using an incorrect power supply will void any warranty on this product.  Other power bricks may work just fine, but we cannot guarantee them.
