SYNTHROTEK ATARI PUNK CONSOLE

SYNTHROTEK ATARI PUNK CONSOLE

SYNTHROTEK ATARI PUNK CONSOLE

Regular price $64.99
/
  • Free shipping over $99
  • Easy returns
  • Secure payments
  • In Stock

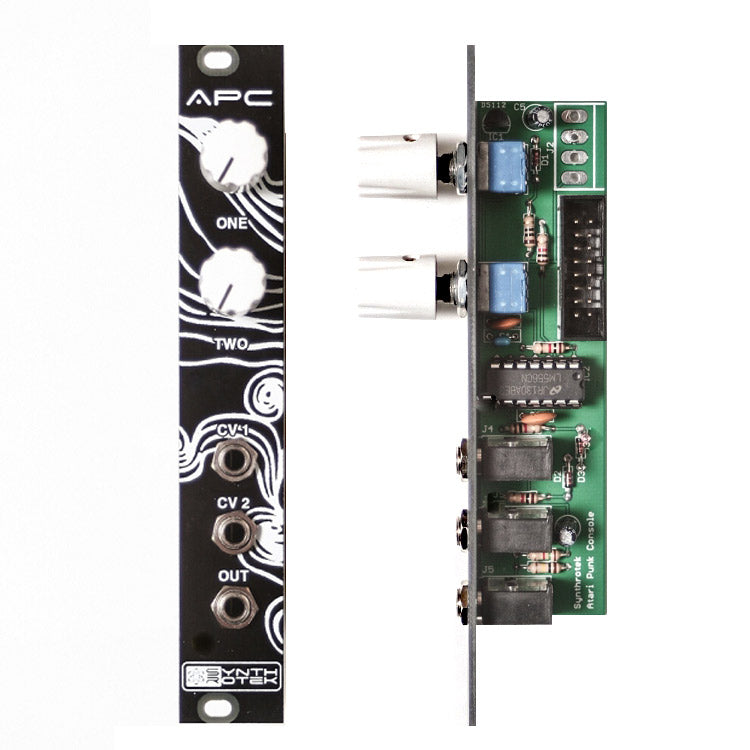

Here is our Atari Punk Console in Eurorack form! Originally designed by DIY electronics guru Forrest Mims III as the ā€œStepped Tone Generatorā€, the Atari Punk Console is one of the most famous and recognizable Lo-Fi synth circuits ever. Using a single 556 dual timer IC with minimal part count, the Atari Punk Console circuit is a solid, time-tested noise generator capable of outrageous square wave madness!

  • Low part count = easy build for beginners!
  • Control Voltage (CV) input allows step sequencers and waveform generators to expand the sonic capabilities of theĀ Atari Punk ConsoleĀ from drone to arpeggio-like dynamism. Use any variable voltage source from 0-Supply Voltage for some glitchy goodness! The APC modular version has two CV inputs that modulate the two square wave internal oscillators.
  • Powered by Doepfer style 16-pin header connection +12V
  • Power Draw: +/-20mA
  • 2 potentiometer controls ā€“ Pulse Width and Frequency contour the tone.
  • 4 HP
  • 1.304" deep
  • Metal Photo Aluminum Panel w/ graphics
  • Comes with power cable and 2.5mm screws
