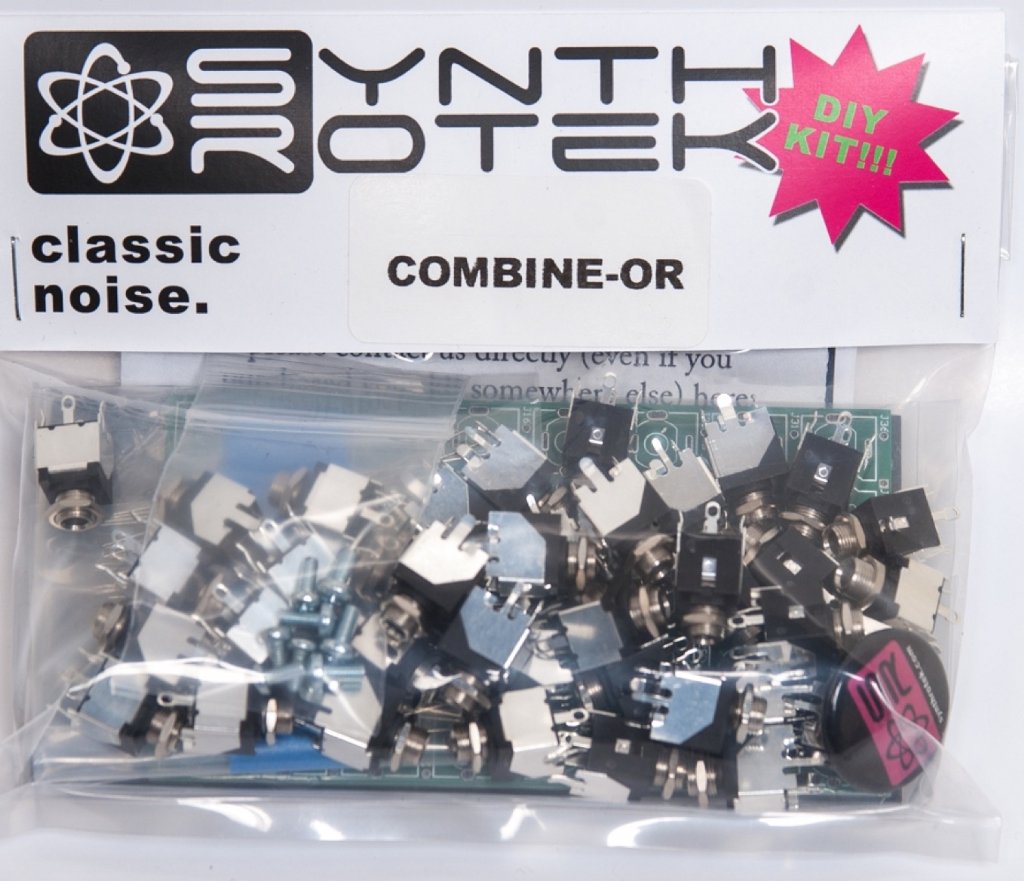

SYNTHROTEK COMBINE-OR DIY KIT

SYNTHROTEK COMBINE-OR DIY KIT

SYNTHROTEK COMBINE-OR DIY KIT

Regular price $59.99
/
  • Free shipping over $99
  • Easy returns
  • Secure payments
  • In stock, ready to ship

Need more OR? The Combine-OR is an 8 channel OR-Combiner with 4-inputs and 1-output per channel.

The Combine-OR allows the user to combine gates, triggers and other logic signals into a single combined OR output.

There are 8 numbered rows that can be daisy-chained in order to input many multiple logic sources, resulting in complex gate or trigger outputs.

This is a passive module and thus does not need a voltage connection or power cable. The passive diodes produce a slight voltage drop between the input and the output of each channel. As a gate combiner it will combine 2 to 4 gate inputs to produce an OR function on the output. When combining CVs the highest positive input will appear at the output with about 0.7 volts of drop.

The Combine-OR is available as a fully assembled module or in kit form. This kit can also be used to make an 8-channel 1 to 4 passive mult

http://www.synthrotek.com/products/modular-circuits/eurorack-combine-or-module/

  • 12HP
  • 16 mm Depth
