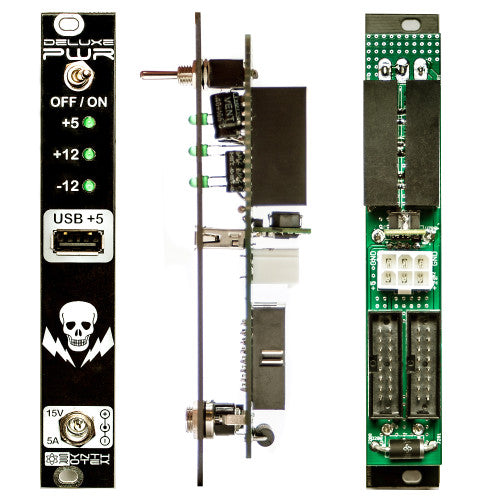

Synthrotek’s “super-slim” Deluxe Power is designed to give you maximum power in a small, elegant package.



SMALL & SAFE: 4HP Panel at only 29mm deep!  This module is very skiff friendly and will fit in ANY Eurorack case.  We use VERY safe and efficient converters and regulators to protect you from short circuits or reverse polarity mistakes. If your system is drawing more power than the Deluxe Power is rated to draw, the LED on the front panel will blink and the offending rail will temporarily stop functioning. In that case, simply turn your system off and remove module(s). The fastest and easiest way to check your power consumption is by making a virtual case on Modulargrid.



FLEXIBLE: Finally a system that grows with you!  Start off with one Deluxe Power Module and one or two flying bus cables (keyed of course to avoid reverse polarity mistakes!) then graduate to our Noise Filtering Power Distribution boards as your module count grows. Connecting to our boards is a ‘snap’ now with our new Molex ‘quick-release’ power system that allows you to daisy chain Synthrotek distribution boards with ease.



POWERFUL: The front panel takes a standard 2.1mm center positive plug and is compatible with our locking DC jacks.  For maximum flexibility, this power supply kicks out all 3 rails (-12, +12, +5) with adequate power for a medium-sized case: Ideal for up to 2 rows of 104 HP and beyond (make sure to consult the owner’s manuals of your modules in order to make sure you are not trying to pull more amps than are available with this power supply).



This product requires a 90W (5A or greater), 15-28V, center-positive power brick with a 2.1mm DC plug (2.5mm will also work, though it will be a little loose). It can be purchased as an option above. Supply your own or use a Universal brick or a Mean Well brick. If you purchase a brick from Synthrotek, it will come with a locking DC extension cable.



Click HERE and HERE for technical information on the +/- 12 DC to DC converters.



Click HERE for technical information on the 5V DC regulator.





• MAX CURRENT AVAILABLE PER RAIL:
• +12 @ 2.0A
• -12 @ 1.5A
• +5 @ 1.5A
• Input Voltage Range: 15 to 28 volts DC
• Output Voltage: +12, -12, +5
• USB jack
• Molex quick-release connector for easy install
• 2 16-Pin Eurorack power connectors, keyed for safety
• Module Width: 4HP
• Module Depth: 29mm
• Requires 15-28V 90W (5A) power brick DC Input Jack size: 2.1mm (sold separately)
