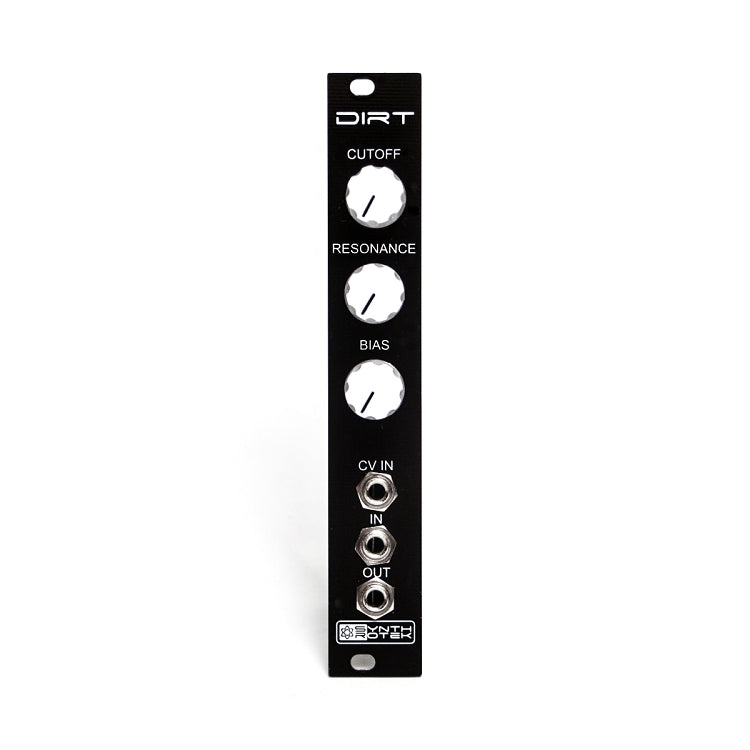

DIRT is our new 4HP low-pass filter / effect for the Eurorack modular synth platform.
Â
Inspired by one of our favorite 'noisy' filters, the DIRT is an unapologetic filter / effect that produces interesting and unique effects via the Bias knob, accessible from the front panel. Â
Â
It's not a traditional filter; it's an effects module with filtering, ring mod effects, wave shaping and even outright brutal harmonic distortion.
Â
DIRT likes to square things up a bit, so throw in a triangle, sawtooth, sine or other wave forms for different style effects. Â Even plugging a guitar (using an external amplification module) into the DIRT produces some great sounds and heavy distortion.
Â
Controls:
Â
- CUTOFF = Cutoff Frequency
Â
- RESONANCE = Increase the Q!
Â
- BIAS = Set the bias correctly or not, the choice is yours
Â
Â
Inputs/Outputs:
Â
- CUTOFF CV IN = Voltage range changes depending on where CUTOFF knob is positioned. External attenuation will be needed for fine modulation.
Â
- AUDIO IN = Audio Input
Â
- AUDIO OUT = Audio Output
Â
Â
Other info:Â
Â
-Â PCB Dimensions: 4 x 1.5 inches
Â
- CV input impedance is 47K
Â
- 4HP
Â
- Power consumption: >1mA
