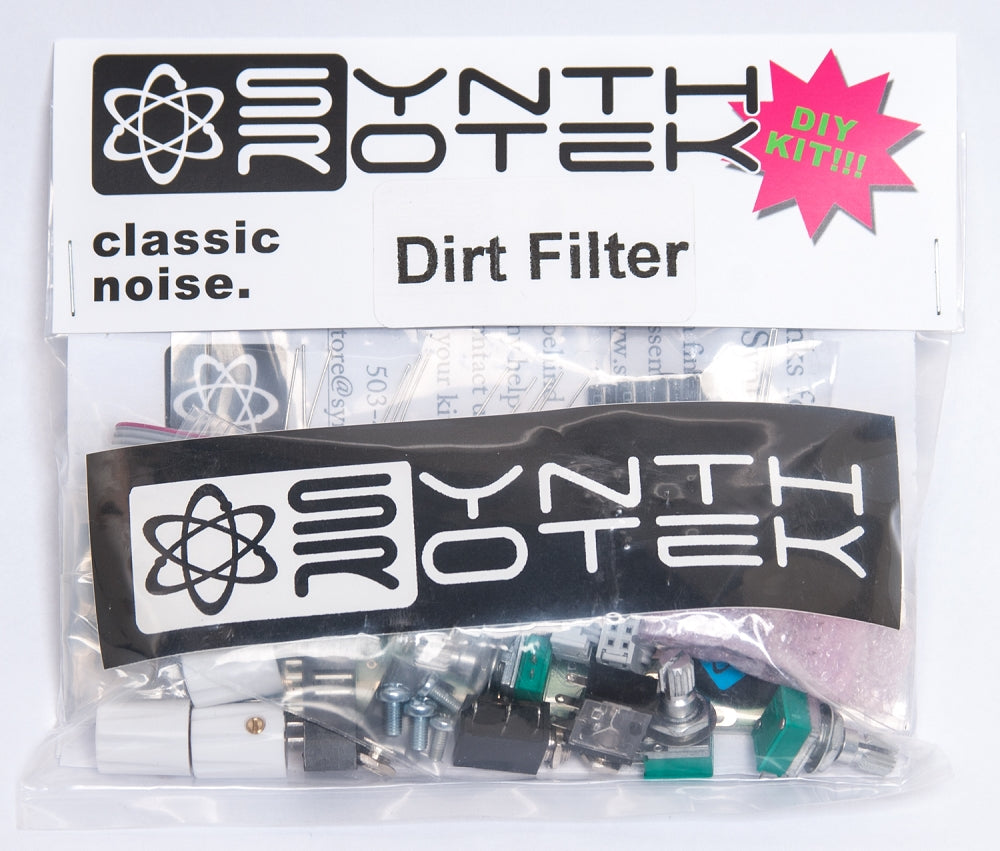

SYNTHROTEK DIRT FILTER DIY KIT

SYNTHROTEK DIRT FILTER DIY KIT

SYNTHROTEK DIRT FILTER DIY KIT

Regular price $54.99
/
  • Free shipping over $99
  • Easy returns
  • Secure payments
  • In stock, ready to ship
DIRT is our new 4HP low-pass filter / effect for the Eurorack modular synth platform.

Inspired by one of our favorite 'noisy' filters, the DIRT is an unapologetic filter / effect that produces interesting and unique effects via the Bias knob, accessible from the front panel.

It's not a traditional filter; it's an effects module with filtering, ring mod effects, wave shaping and even outright brutal harmonic distortion.

DIRT likes to square things up a bit, so throw in a triangle, sawtooth, sine or other wave forms for different style effects.  Even plugging a guitar (using an external amplification module) into the DIRT produces some great sounds and heavy distortion.

Controls:

- CUTOFF = Cutoff Frequency

- RESONANCE = Increase the Q!

- BIAS = Set the bias correctly or not, the choice is yours


Inputs/Outputs:

- CUTOFF CV IN = Voltage range changes depending on where CUTOFF knob is positioned. External attenuation will be needed for fine modulation.

- AUDIO IN = Audio Input

- AUDIO OUT = Audio Output


Other info:

- PCB Dimensions: 4 x 1.5 inches

- CV input impedance is 47K

- 4HP

- Power consumption: >1mA
