The DS-M is a full featured drum synth that can emulate virtually any drum sound!

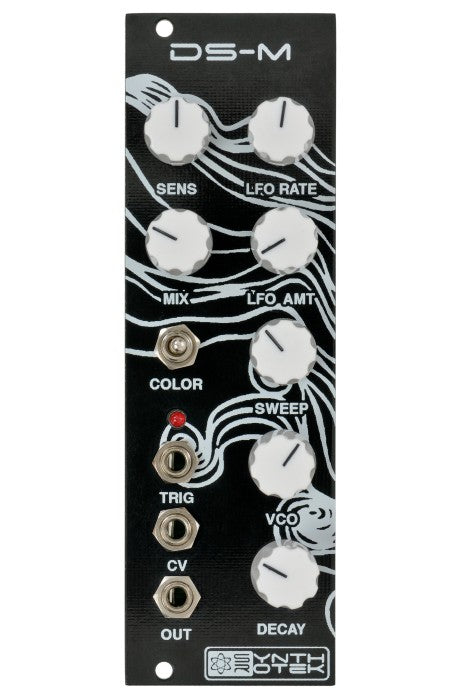

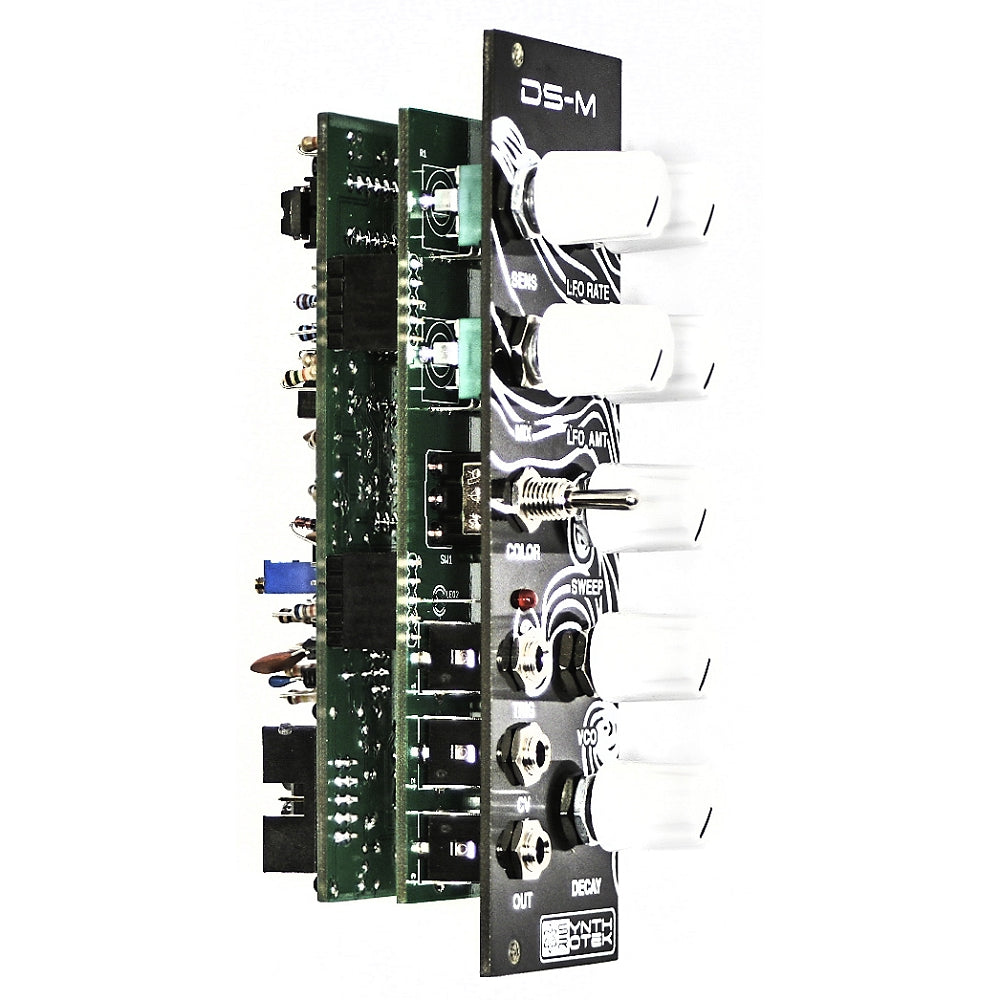

The DS-M (Drum Synth Module) is a complex, modifiable, 100% analog drum synth loosely based on the Coron DS-8 and neatly packaged into an 8hp module.
Changes to the original DS-8 include:
- VCA-like trigger input (more voltage = louder output)
- Trimmer-adjustable attack
- LED trigger indicator
- 1v/o tracking (C0-C4)
- Triangle core oscillator
- Additional noise color switch setting (3 settings instead of 2)
- More distinct noise timbres
- Louder, improved noise circuit
- Really LOW bass frequencies
- Total range ~4Hz to 2.6kHz
In addition to being a highly versatile analog drum synth, this unit is also a fully functional monophonic synth that has these features:
- 1v/o tracking (C0-C4)
- Adjustable attack and decay envelope over the VCA
- Built-in LFO circuit
- Sweep circuit
- Noise circuit
Plug your control voltage and gate directly out of your midi-to-CV converter or connect your QuNexus keyboard, Arturia keyboard, or sequencer, and you're ready to make some music!
Note: Complete units come pre-calibrated (according to the Synthrotek Deluxe Power Supply System). If you are building a kit or have a different power supply system, you will need to calibrate the 1v/o tracking using the DS-M calibration guide.
- Width: 8hp
- Depth: 1.75" (44mm)
- Power connection: 10 Pin Keyed Eurorack
- Current Draw: +12V: 20mA, -12V: 10mA (5V not used)
