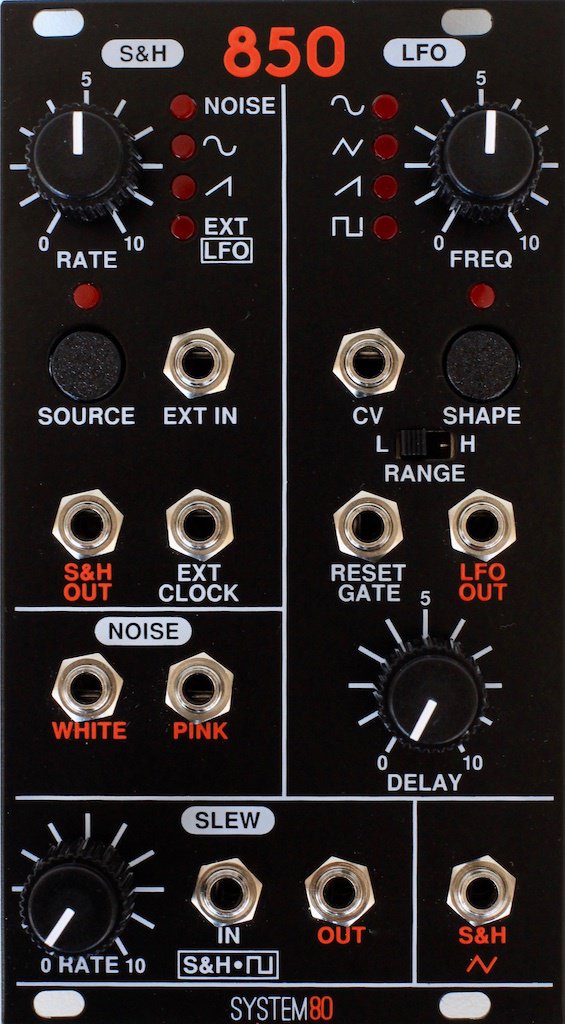

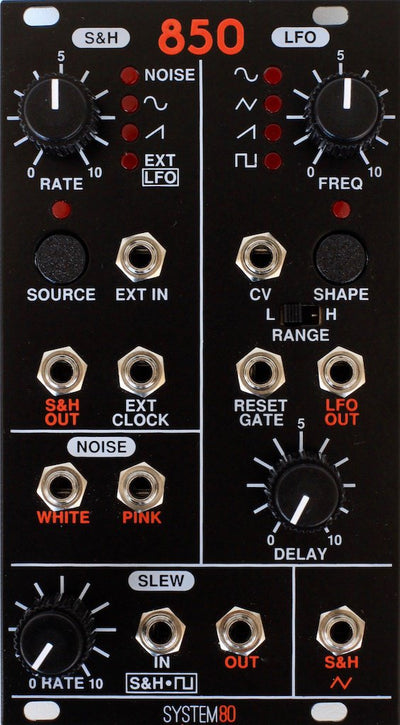

The 850 is a fully analog utility module that combines a voltage controlled LFO, Sample & Hold, Noise source, and a Slew Limiter. The S&H section is normalized to Pink Noise (random) or any of the outputs of the LFO without patching. The output of the S&H circuit is normalized to the Slew Limiter input, allowing slew to be added to the S&H signal. The internal clock driving the S&H doubles as an auxiliary triangle shape LFO. The main voltage controlled LFO features an adjustable delay circuit triggered by an external rising pulse, allowing a gradual increase in LFO amplitude after a reset pulse.

Features

• Voltage controlled LFO with selectable sine, triangle, ramp and square output
• LFO gate/reset input and adjustable rise time after reset
• S&H with internal clock, external clock, and external sample input
• Auxiliary triangle LFO output from S&H clock
• White and Pink noise sources
• Slew Limiter with input normalization to S&H output or S&H clock pulse

http://system80.net/product/850/

• 14HP
• 40 mA +12V
• 20 mA -12V
• 0 mA 5V
• 28 mm deep
