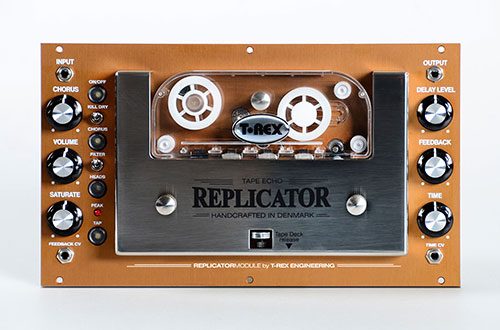

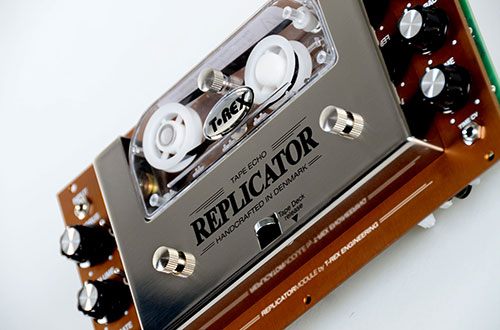

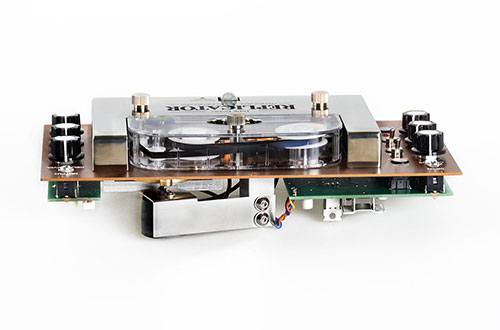

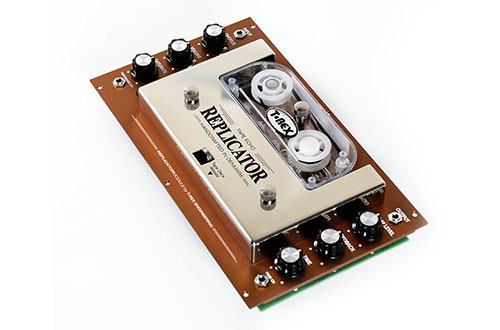

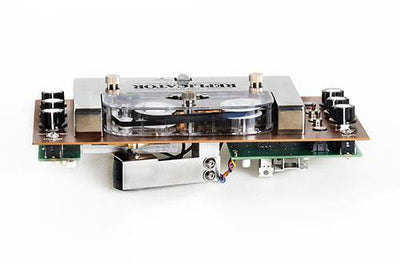

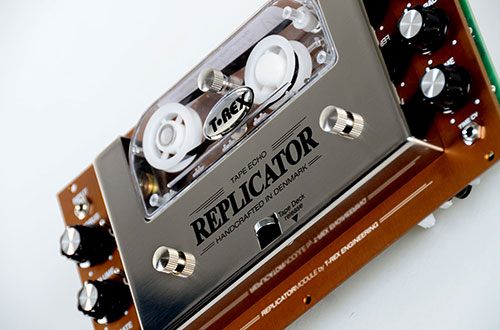

The Replicator Module uses much of the same technology of the ”stompbox” version, but certain parameters and features are optimized for Eurorack/studio use.
CV inputs accept 0-5V control signals, so you can now plug in your favorite oscillator module and control delay time and/or feedback electronically.
Pair it up with a funky, modern wave generator for a perfect marriage between 70´s ambience and contemporary sound manipulation.
The added filter switch dampens high frequency content in the delay signal for less noise and a darker echo.
The internal power rails has been modified to run from the +/-12V Eurorack standard, so you get all the same sounds and features from the pedal version, but in a more studio/keyboard/synth-friendly format.
Get creative with CV control of true tape echos, process instrument signals/tracks in the studio or use as a table top echo unit for live sound.
MADE IN DENMARK
All analog echos and signal path
Delay time controlled by a digitally controlled motor
Three echo modes, modulation of the echo and tap tempo
CV inputs for controlling time/feedback – get super spacious, yet ultra cool sounds
Kill-dry switch for parallel processing (mixer)
Housed in a compact Eurorack module (44HP)
|Input impedance @ 1KHz||Higher than 1M Ohm|
|Output impedance @ 1KHz||Lower than 2,5K Ohm|
|Power supply (not included)||+/- 12V DC|
|Current draw @ +/- 12V DC||350 mA(+12V DC)/175 mA (-12V DC)|
|Maximum input signal V p-p||8,7V p-p (12 dBu)|
|External connectors||input, feedback, speed, output, feedback CV, time CV|
|Controls||on/off, chorus, volume, saturate, feedback, delay level, time, heads, chours on/off, filter switch, tap tempo, killdry|
|Pedal size incl. knobs (W x H x D)||222 x 38 x 129 mm / 8,74 x 1,50 x 5,08 inch|
|Weight excl. packaging||0,922 kg / 32,52 oz|
