TESSERACT MODULAR 8 X 8 BUFFERED MATRIX

TESSERACT MODULAR 8 X 8 BUFFERED MATRIX

TESSERACT MODULAR 8 X 8 BUFFERED MATRIX

Regular price $109.99
/
  • Free shipping over $99
  • Easy returns
  • Secure payments
  • In Stock

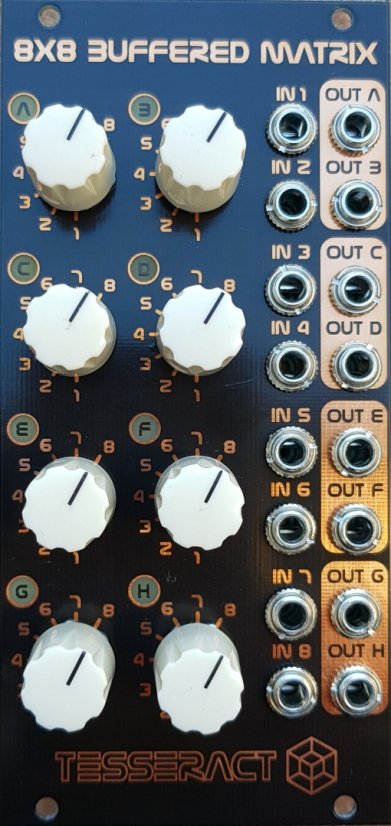

This module is a 8 ins and 8 outs precision buffered matrix.
Every output has a rotary switch to select an input. You can make the same input go through several outputs but not several inputs go to the same output.
There's also a bicolor led next to every switch for visual info of the signal that is going thru it.
Allows fast patch changes and easy rerouting signals, both audio and cv.
Can be used as a traditional buffered multiple, pretty flexible one: 1 x 8 outs, 2 x 4 outs, 4 x 2 outs or any other combination.

Dimensions
12 HP
24 mm deep
Current Draw
62 mA +12V
65 mA -12V
0 mA 5V
