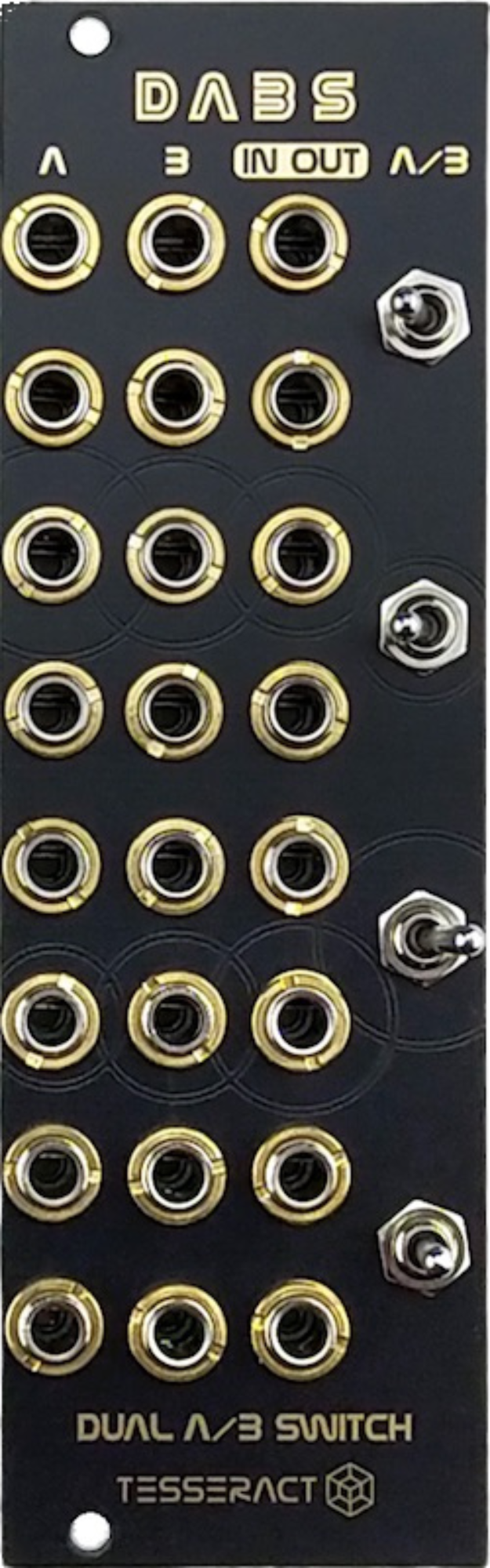

TESSERACT MODULAR DABS : USED

Dual AB Switch

The A/B Switch selects between A and B and the middle position of the switch is a “mute”, works with any kind of signal (cv or audio) and is bidirectional.

This is an utility module that I made for switching stereo signals, but other uses are possible:

• Select between 2 stereo sources.
• Select between 2 stereo destinations.
• Bypass control for mono signal processing.
• Routing control for a single signal.

Panel is reversible so it can be mounted with the switches on the right or left.

• This module does not draw any power.
