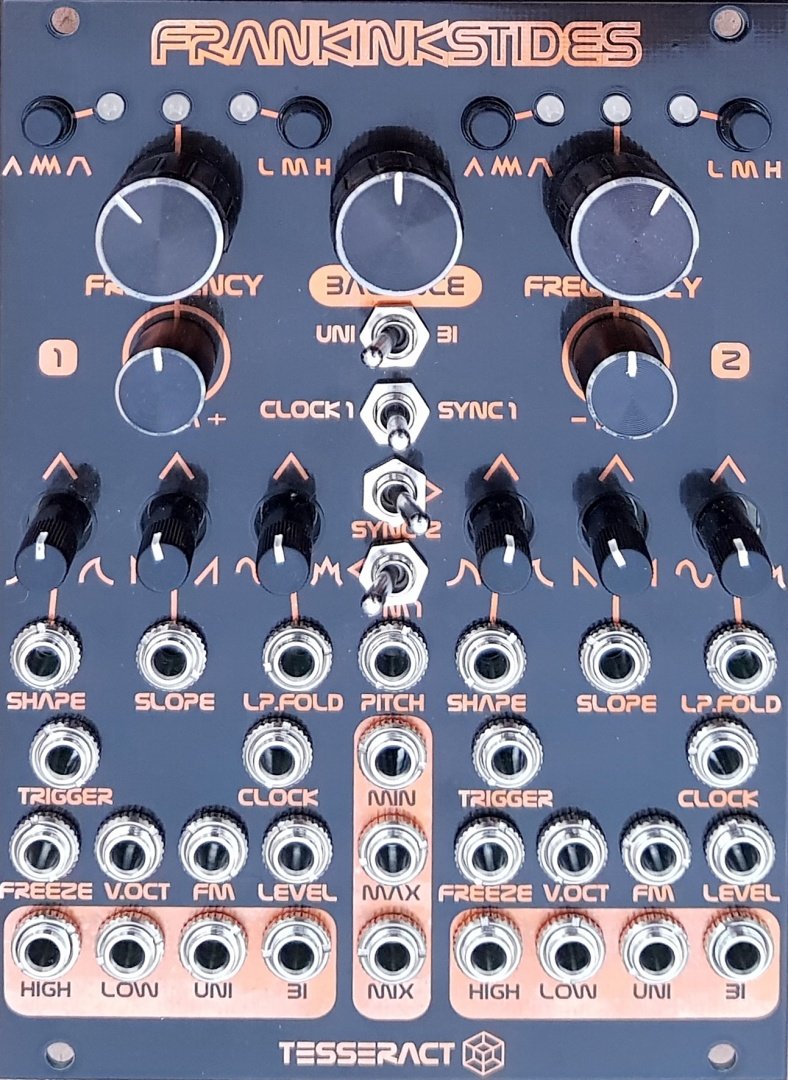

FranKinksTides is a 18hp dual Tides (based on the Swirls pcb layout) with the max/min circuit from Kinks and some switches for sync, quadrature, PLL and FM operation. It can be a Double/Complex Oscillator, a Dual Function Generator or any combination of Oscillator, Lfo and Envelope Generator with lots of cv control plus some interesting cross-modulation and sync features.

some improvements in version 1.2:
-Mix output is now buffered, no signal bleeding on single outs.
-Mix pot controls also the balance of the signals sent to the max/min circuit.
-Uni/bi switch now also determines the signal sent to FM1.
-Clock/sync switch has now a center OFF position, no need of plugging a dummy cable in the Clock1 when using Sheeps firmware to avoid ultra fast sound bank changes.
small improvements for DIY:
-Bigger font size on the pcb.
-Parts renumbered for easy DIY.

original design by Émilie Gillet

https://www.tesseractmodular.com/eurorack-modules/frankinkstides-1-2

• 18hp
• 140 mA +12V
• 37 mA -12V
