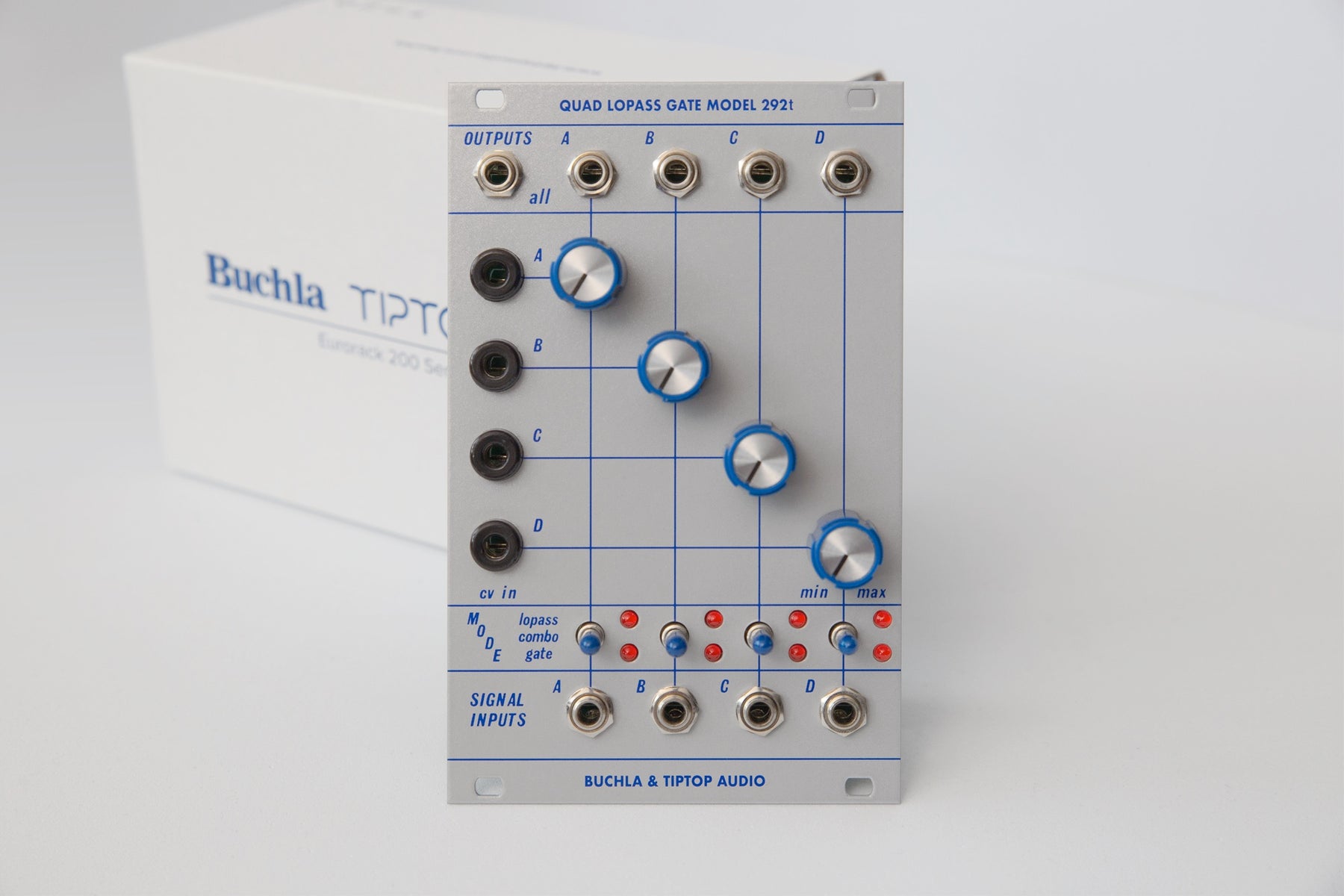

TIPTOP AUDIO BUCHLA 200 SERIES QUAD LOPASS GATE MODEL 292T : PRE-ORDER
OUTPUTS
All - Can use this output as a 4 to 1 (mono) audio mixer
A,B,C,D - Individual audio outputs. Can be used as a quadraphonic distribution mixer
CV INPUTS
A,B,C,D - Control Voltage inputs for each audio channel
BLUE KNOBS
These are manual volume/offsets for each channel

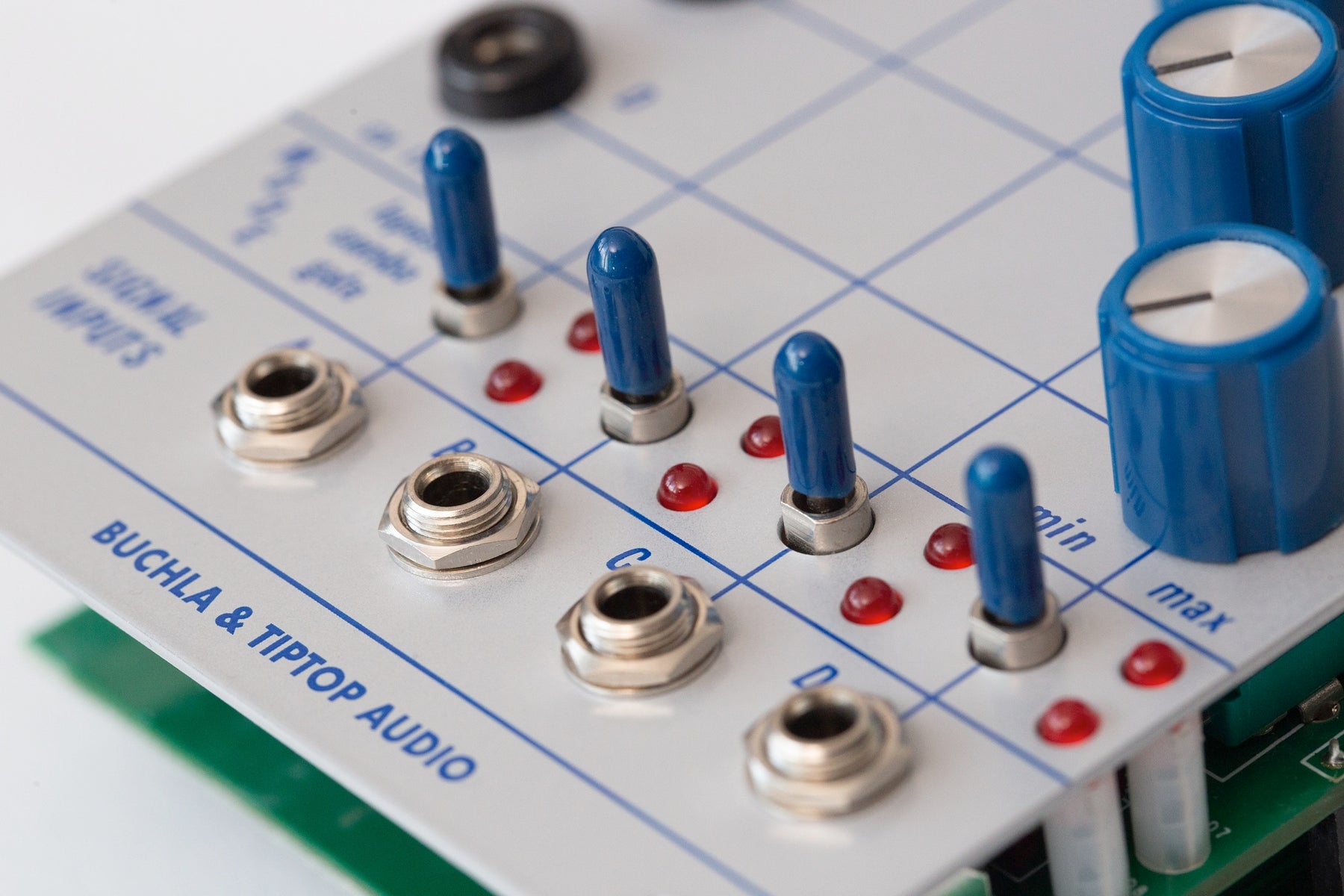

BLUE SWITCHES
These select among 3 different modes:
Gate - A linear VCA (LED lit)
Combo - A combination of the linear gate and the lopass filter mode. It adds a subtle ringing decay to the audio (No LED, both LEDs not lit)
LoPass - A LoPass filter. Gives that “snap” when pinging it. (LED lit)
INPUTS
A,B,C,D - Individual audio inputs
* Note:
Explore using the the 257t to attenuate the an envelope going into the 292t for a wider variety of timbres and responses
Size: 16 HP - Depth: 45mm Power: +12V 87mA / -12V 36mA
