TIPTOP AUDIO CONTROL PATH

TIPTOP AUDIO CONTROL PATH
TIPTOP AUDIO CONTROL PATH
TIPTOP AUDIO CONTROL PATH
TIPTOP AUDIO CONTROL PATH
TIPTOP AUDIO CONTROL PATH

TIPTOP AUDIO CONTROL PATH

Regular price $165.00
/
  • Free shipping over $99
  • Easy returns
  • Secure payments
  • In Stock

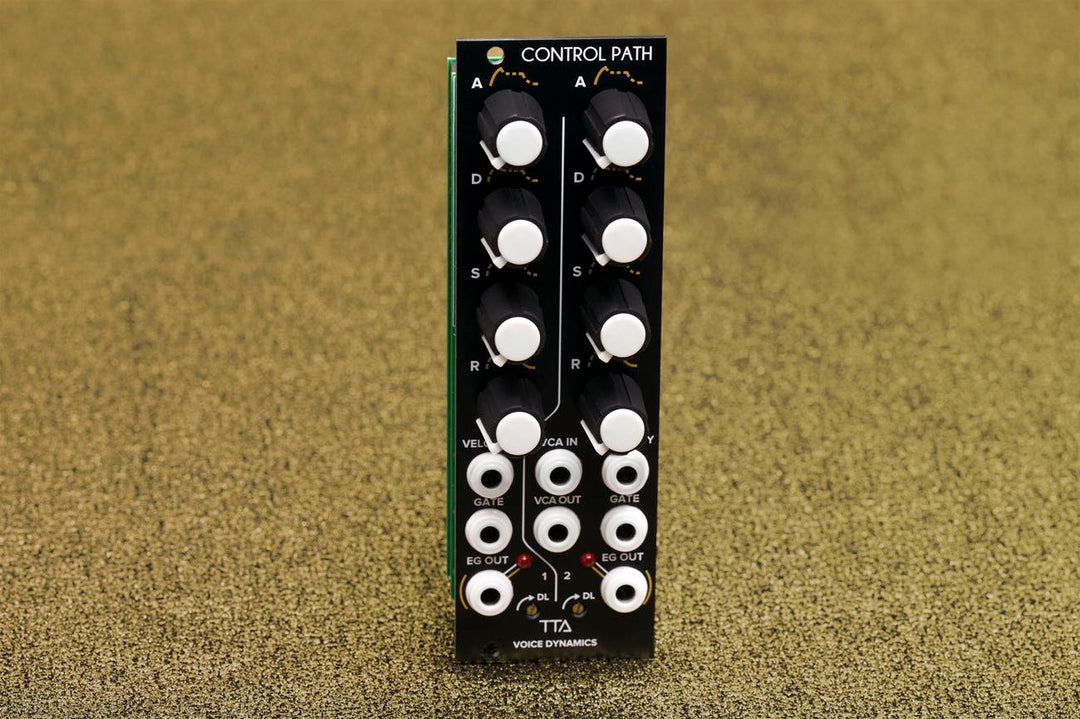

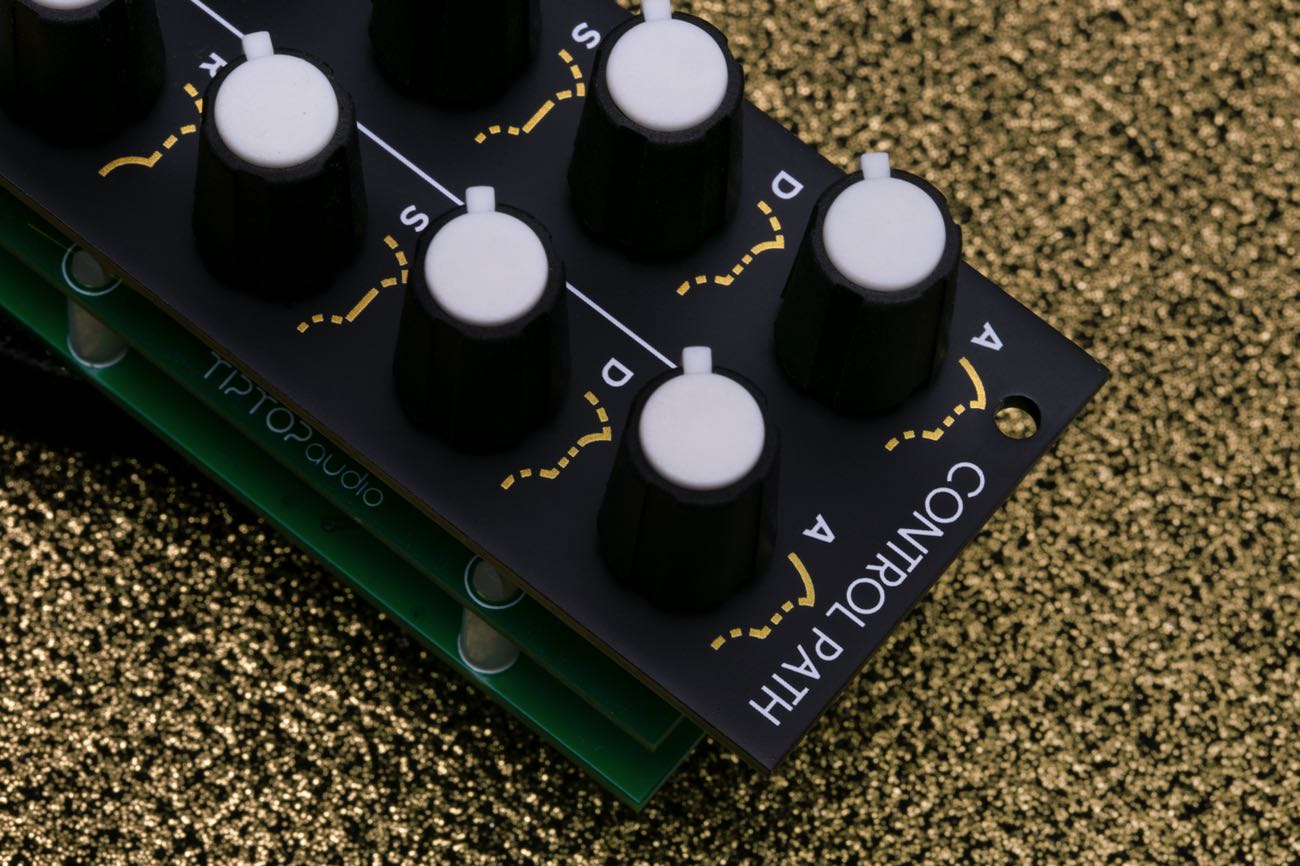

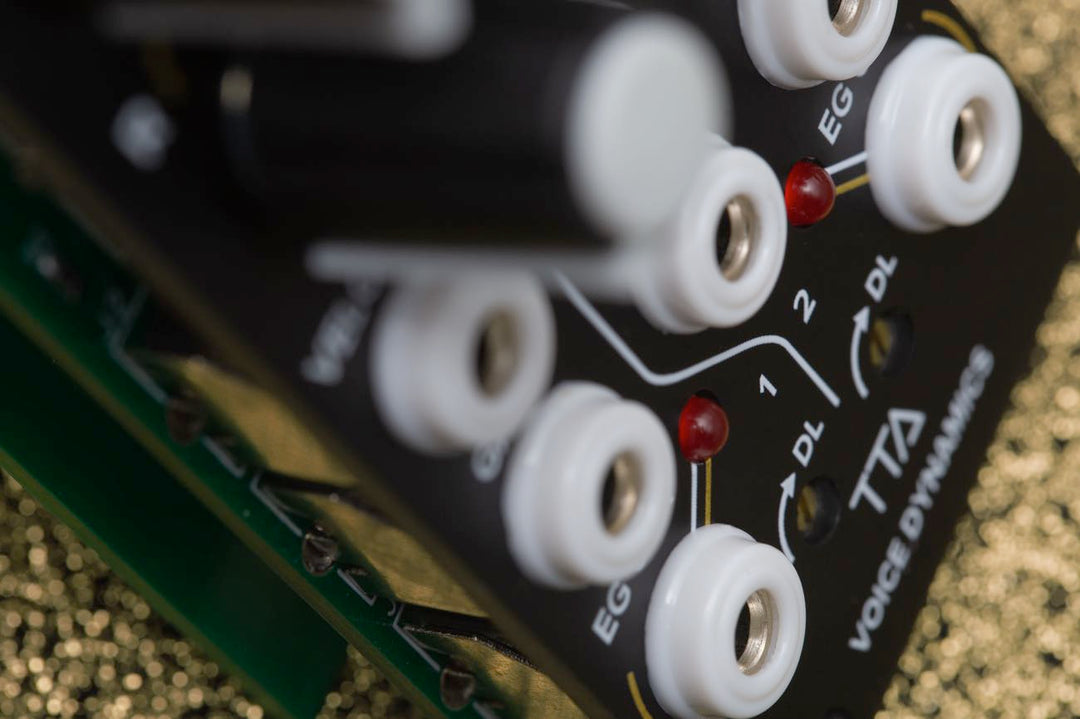

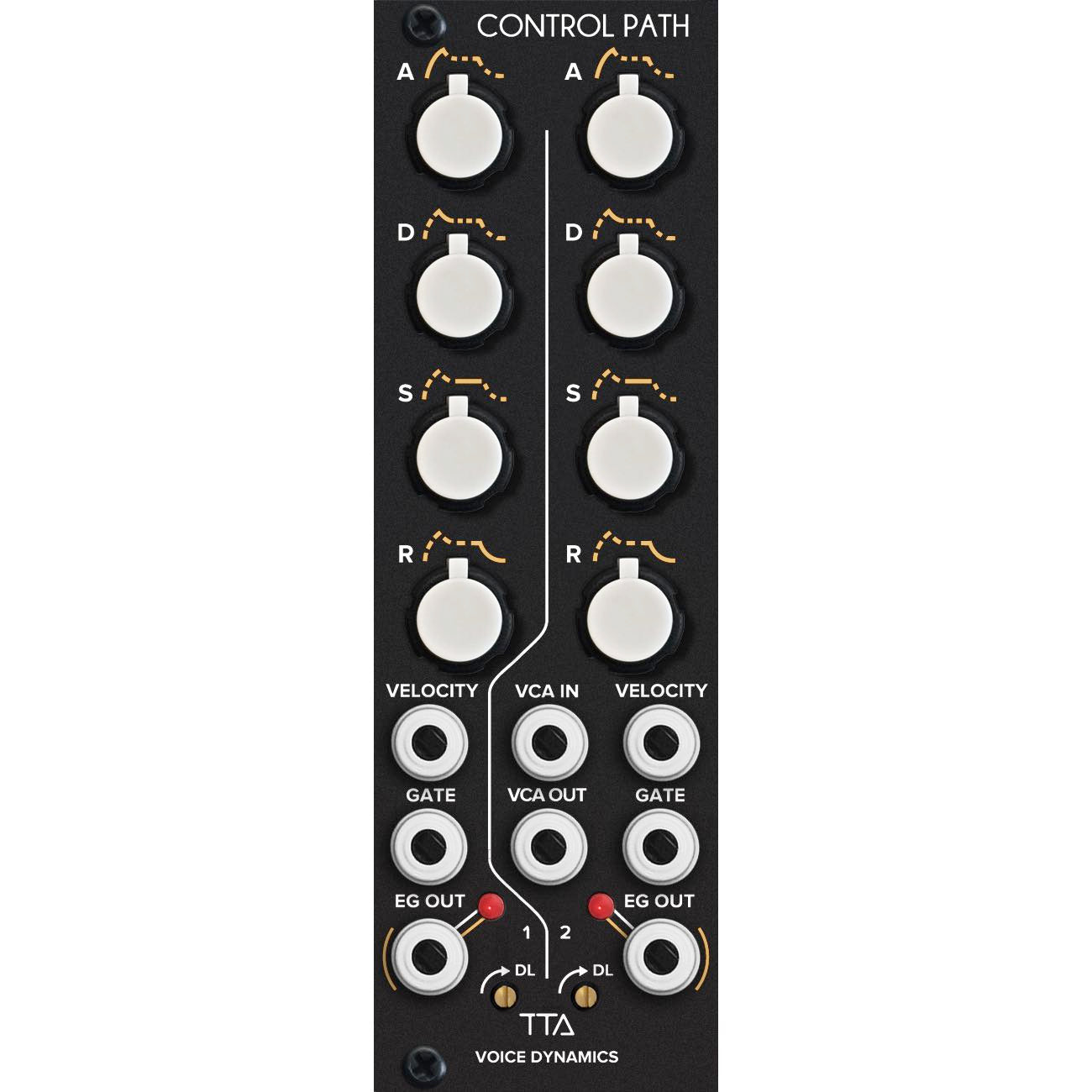

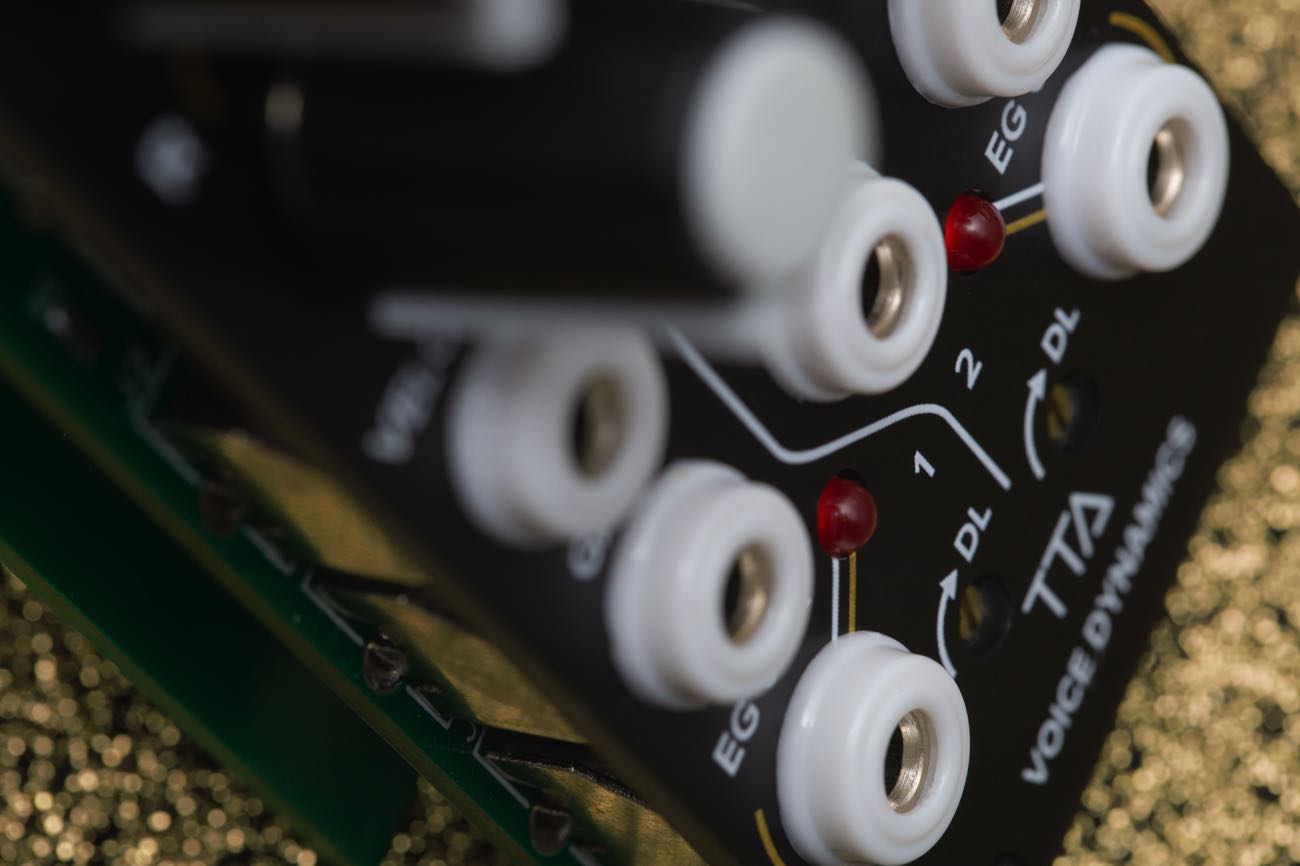

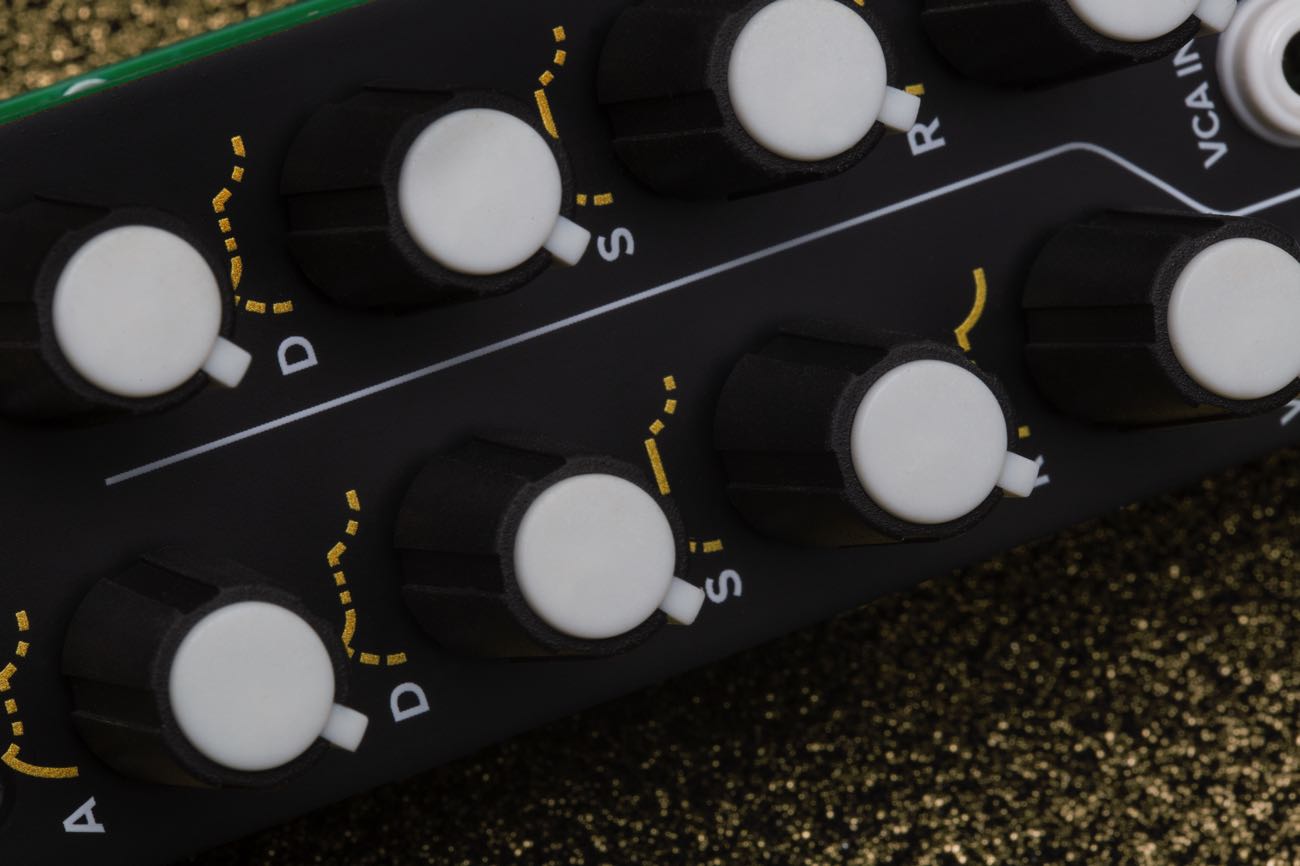

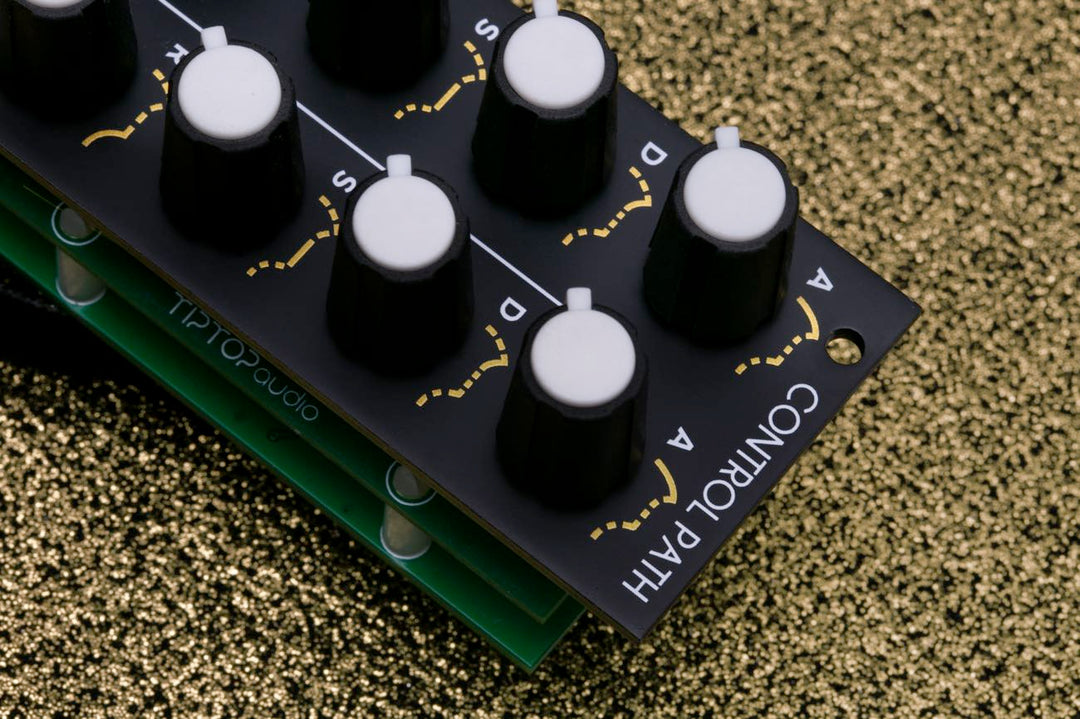

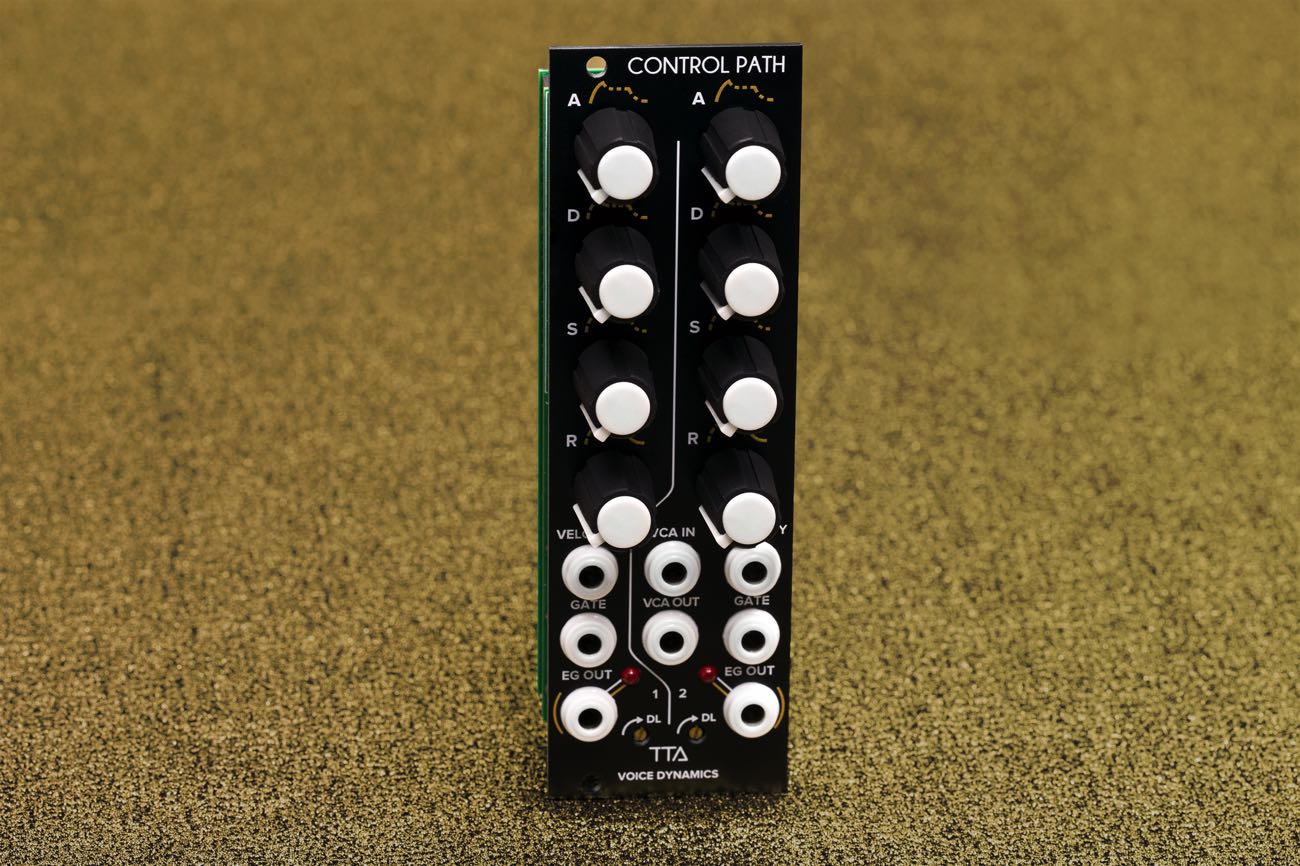

Is an all in one voice dynamics module that helps build full voices quickly. It contains two analog envelopes with velocity cv, and one VCA. In a typical voice patch the left envelope will control a filter and the right envelope will be the voice VCA. Velocity control is provided for each envelope and delay front panel trimmers are used to compensate for any miss match between incoming gate signal and velocity CV timings. Envelope cv outs are 0-5V, Velocity cv ins are 0-5V.

Size: 8HP – Depth: 40mm / 1.5”

Power: +12V 50mA / -12V 55mA
