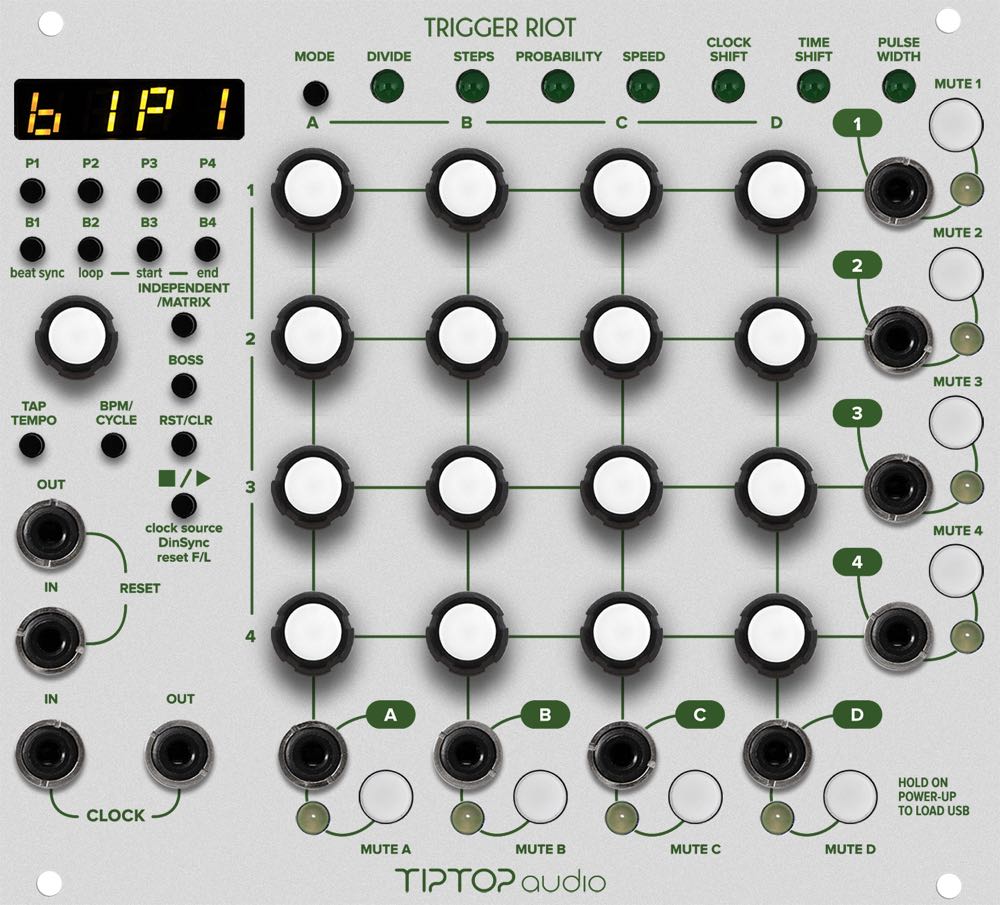

TIPTOP AUDIO TRIGGER RIOT WHITE

TIPTOP AUDIO TRIGGER RIOT WHITE

TIPTOP AUDIO TRIGGER RIOT WHITE

Regular price $449.00
/
  • Free shipping over $99 to most states
  • Easy returns
  • Secure payments
  • In Stock

From a conceptual view, the Trigger Riot generates 16 clock streams consisting of multiple time manipulation functions (division, offsets, etc) that interact to create the trigger output, and direct access to each parameter via individual knobs allows for quick manipulation. The 8 outputs are the sum of those manipulated streams per row. The outputs of the module are arranged as either a 4x4 matrix, where each of the 16 knobs affects both row and column, or as a set of independent outputs for each row or column. This allows forming 8 complex musical interactions in a ‘Matrix’ mode or 8 independent streams in ‘Independent’ mode and is switchable from one to the other on press of a button for some unexpected results.

Since each of the 16 knobs represents a real time tweakable trigger generator/modifier the Trigger Riot is extremely playable and can result very complex patterns with only few knob turns; patterns that would otherwise take much longer and in some instances be almost impossible to produce using grid based step sequencing. Patterns can have unique time signatures that can repeat or be randomized through probability, time shifted and phased, divided, multiplied and counted, it’s unbelievable how complex this module can get with minimal input.

Functions include:

Divide: Divide the clock stream into either even or odd divisions from 1 to 255

Speed: Multiply or Divide the clock streams in sub clock particles based on 24 PPQ, breaking up the standard grid values.

Probability: Sets the odds of a trigger firing which makes more varied and less rigid patterns or can create subtle accents and fills.

Pulse Width: Sets the pulse width of each stream, creating overlaps and as a result all kind of odd time signatures; also great for sustaining envelopes or for programming a high pulse fro some time.

Clock Offset: Moves the trigger streams in time to change the relationship between streams. Streams can be set to the same amount but offset to trigger in between each other rather than simultaneously to create syncopation effects.

Time Shift: Shifts the triggers streams variably in between clocks for swing type feels and off the grid patterns.

Step: Places single shot triggers on individual clock ‘Steps’ to trigger events once per pattern. This can also be seen as a pulse counter.

Mute/Sel: Muting of each trigger output for live dub mixing or to select which row to edit in ‘Independent’ mode.

Tap tempo: Tap in your own time.

Cycle: Internal reset counter to constrain pattern length and relationships between divisions

Clock Out: Trigger out of the Riot’s highly accurate internal clock

Clock Input: External clock

Reset Out: Trigger output based on the internal reset length

Reset In: External trigger input to reset the internal count

Playing sets:

The Trigger Riot features 4 banks of 4 presets for saving, and instant recall of patterns with any level of complexity making it a real time sequencer. Patterns and banks are not volatile and can be loaded for stage or studio sessions on power up.

Several riots can be synced together with all control signals shared based on a master reset, clock, and pattern across multiple units and even synced with the Circadian Rhythm sequencer.

In addition to that, a master touch controller is in development which can control up to 4 Riots for the ultimate in hardware sequencing for Tip Top’s wide array of drum and synthesis modules (of course, it works great with every other module too).

A little bit of what going on under the hood: The Trigger Riot is made with the latest in high-end microprocessors and a special combination of hardware and firmware technology designed to achieve unprecedented levels of timing and extreme types of pattern complexity.

Size: 28HP

Engine: State of the art 80MHz 32bit Processor MIPS M4K Core
