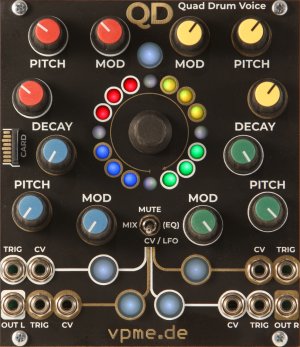

Quad digital drum voice with internal mute/panning mixer and flexible CV routing

• 4 digital drum voices in a 22hp compact module
• every voice can be a sample player, a wavetable VCO or a digital drum model
• control of pitch, decay and sample selection per voice
• uSD card slot, up to 1024 samples total, up to 128 samples per drum voice under CV control
• digital models offer range of kicks, snares, hats, strings and other percussive sounds
• 4 trigger inputs
• 4 assignable CV inputs
• 4 mute buttons and a very intuitive and powerful control interface
• 4 internal LFOs or mod envelopes than can be synced to triggers
• internal 4 channel mixer, 2 output channels
• internal 3-band equalizer and compressor

• 22hp
• 120 mA +12V
• 10 mA -12V
• 0 mA 5V
• 20 mm deep
