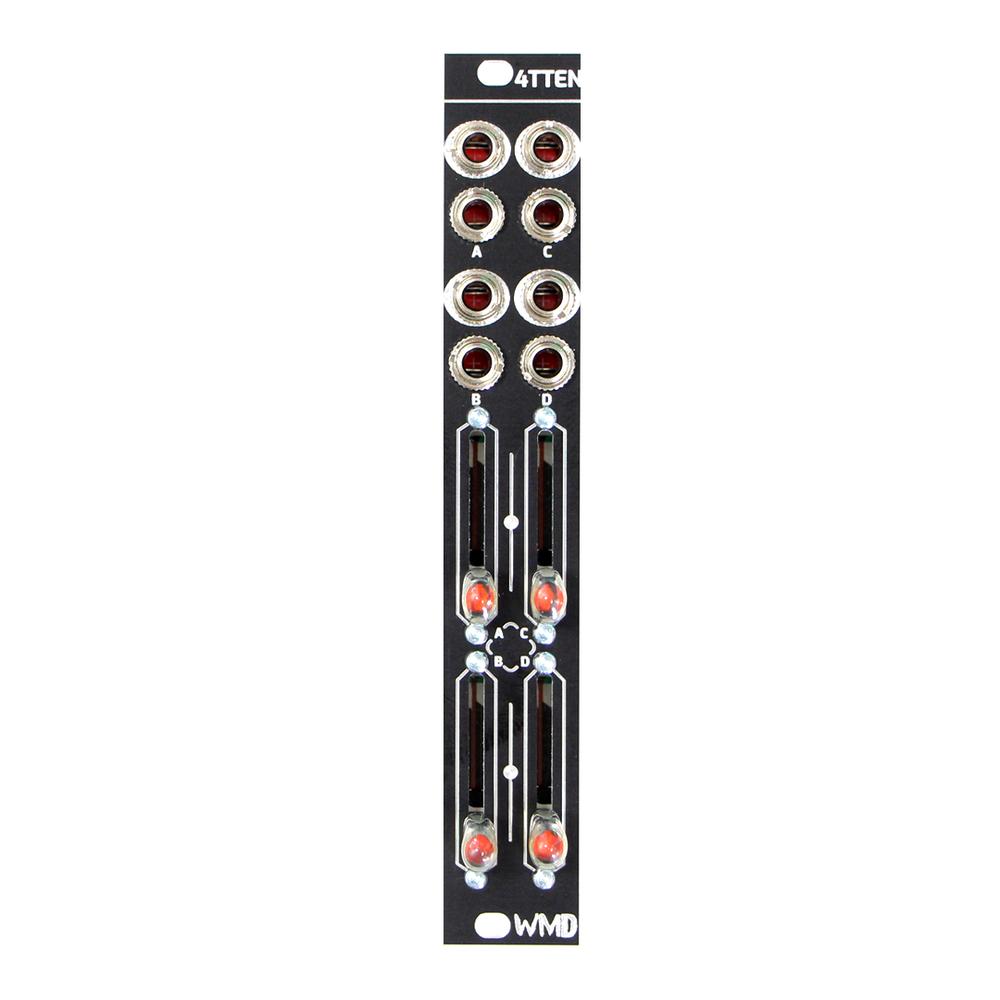

4TTEN (pronounced either ATTEN or FOUR-TEN) is a four channel attenuator and offset generator.

Use 4TTEN to attenuate any CV or audio signal by running through the ins and outs.

A +5V voltage source is normalled to each input, making it a standalone offset when there is no cable patched into an input.

Each channel is completely independent.

Ever-so-useful in live performance, we designed this module with 4 sliders for easy maneuverability, visual feedback, and enjoyable to play interface. Make your eurorack modular synthesizer system more playable with 4TTEN!

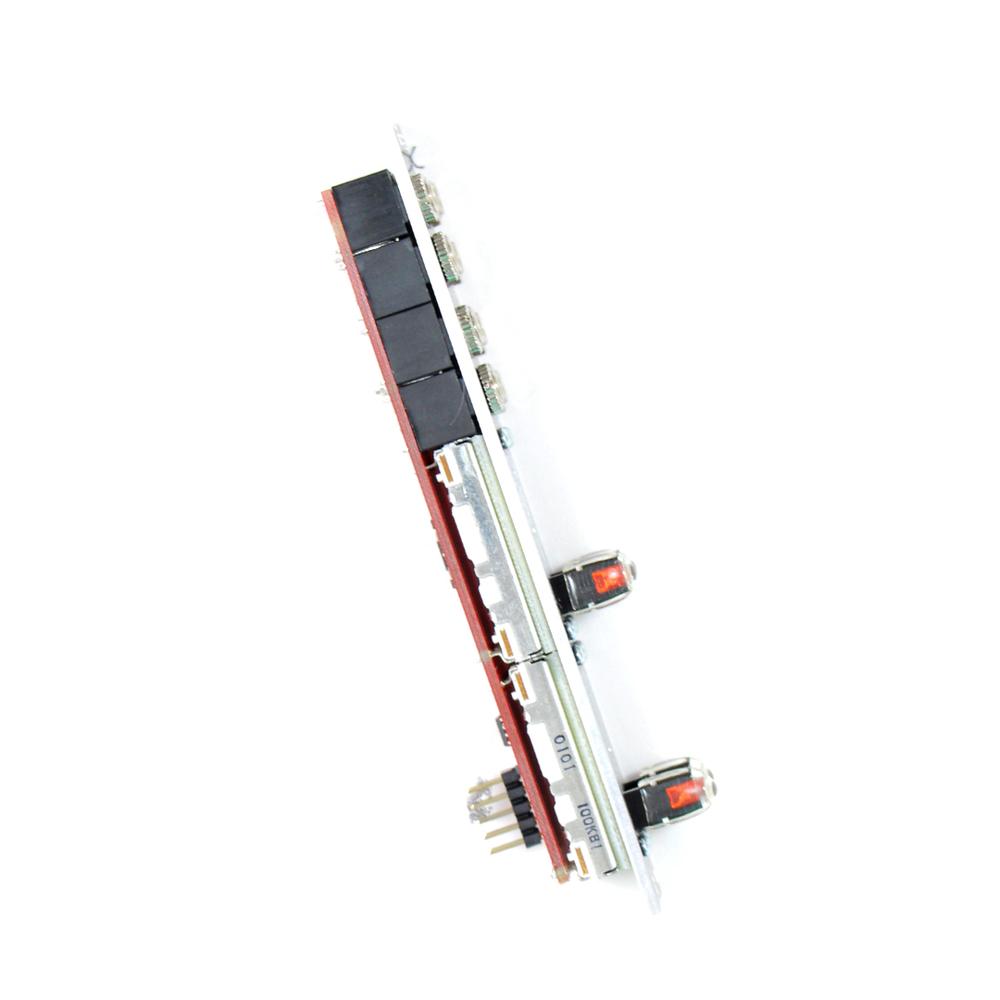

*** 4TTEN's PCB is 113mm (4.45") tall and may be a tight fit in some cases ***

Highlights

- 4 independent attenuators for Control Voltage and Audio signals

- Performance friendly sliders

- Can be used as 0 to +5V Offset

- Comfortable fader caps from the Performance Mixer

- Only 4 hp!

SPECS:
Size: 4hp
Depth: 30mm(with cables)
Power: +5mA , -5mA
Virtually no drop on 1V/Oct signals.
VERTICAL PCB LENGTH: 113mm (4.45")
IMPEDANCE = (SOURCE + 100ohm ) / 100kohm
UNBUFFERED
