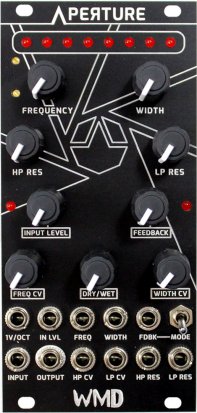

The Aperture is a bandpass filter with a wide palette of tonal colors. It is capable of simple filtering, nasty acidic squelches, and capturing images of UFOs descending from the heavens on a cold winter’s night. The main design focus of the Aperture was control and giving it all to the user. This allows for the quick transition between these sonic landscapes while the center of focus remains a choice that is your own.

Features include:

• ●  Variable bandwidth via tactile and CV controls

• ●  Independent resonance control over both sides of the filter

• ●  Dry / Wet mix for parallel filtering sounds

• ●  Feedback circuit with two modes and CV input

• ●  Independent CV control over the cutoff frequency of each side of the filter separate from

  the width and frequency controls

• ●  Four octaves minimum V/oct tracking

• ●  Temperature compensated

• ●  Self Oscillation of both filters throughout audio range.

  Specs:

• ●  Current:

• ●  +12V = 120mA

• ●  ­12V = 100mA

• ●  Depth: 25mm

• ●  Width: 12 HP

• ●  Height: 3U Eurorack

• ●  Input Gain: ­90dB to +6dB

• ●  Nominal Input: 10Vpp

• ●  HPF Cutoff Freq Range: 0.5 Hz to 50kHz

• ●  LPF Cutoff Freq Range: 0.1Hz to 25kHz
