Expand Concept

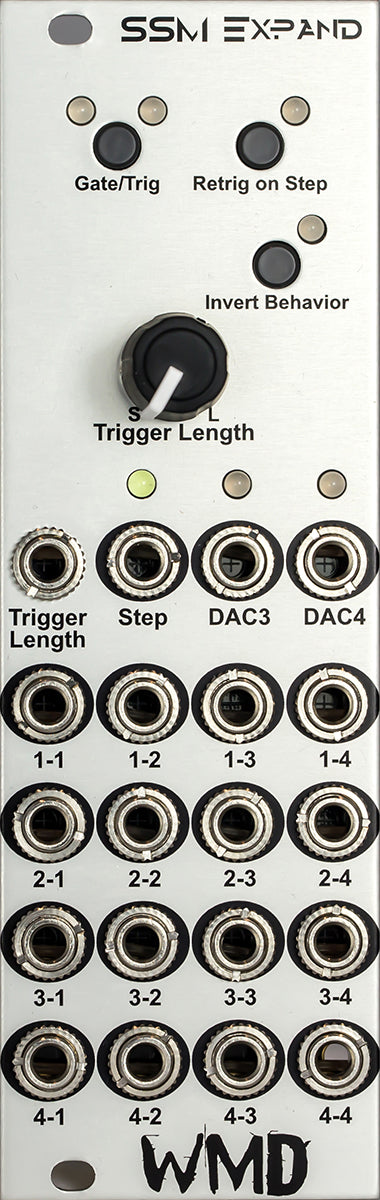

The SSM Expand 8 HP module provides extended functionality of the SSM.

Gate/Trig: Gate (Green LED lit) provides 10V outputs for each routing button. It mirrors the routing shown by the SSM LEDs. Trig mode (Red LED lit) will output a trigger when a step (CV, Step/Gate or Reset) is taken. Pushing a routing button will not change the output thus providing synchronized triggers.

Trigger Length: CV and knob provide adjustable trigger length.

Retrig on Step: When on, gates and triggers will retrigger quickly when a step is taken.

Invert Behavior: When on, routings that are OFF will produce ON triggers or Gates.

DAC3/4: Two 4 bit DAC outputs that output a weighted 4 bit voltage between 0 and 5 volts. From routing columns 3 and 4.

Step: Outputs a trigger for each step, reset or CV change that is made to the SSM.

Installation: Connect the 20 pin ribbon cable to the GTExp header on the SSM, and the ToSSM connector on the Expand. Red Stripe Down.

Specs: 8 HP. 25mm Depth. 10V Gate Outputs. Current consumption is +40mA, -3mA. 12 month warranty.



Specs & Notes




Width: SSM 16 HP. Expand 8 HP.

Current consumption: SSM +80mA/-32mA. Expand +40ma/-3mA.

Voltage Levels: Input range +-10V. Output range +-10V. Step/Gate and Reset sense signals at 0.8V.

Operating Frequency: Maximum transition frequency is 26kHz. Pushing buttons at high clock speeds will slow the response as the buttons are debounced.

Compare Input: +-10V. Normaled to 0.5V.

Depth: SSM & Expand - 25mm with connectors

Compliance: The SSM and Expand are RoHS and CE compliant.

Warranty: The SSM and Expand are covered under warranty for 12 months after purchase. Please contact us if you ever have problems. We will take care of you.

Manual is available as a PDF.
