Mid/Side Encoder-Decoder

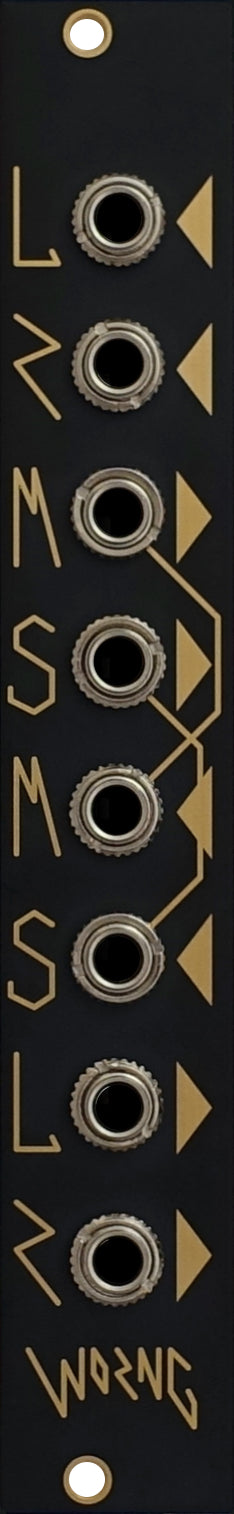

The LRMSMSLR brings the power of mid/side processing to the world of Eurorack. Mid/side processing is a powerful tool often utilised in mastering studios; it takes a stereo signal and separates it into the mid and side elements, allowing you to independently process them and then recombine them into a stereo signal.

Used creatively this allows a sound designer to do anything from using two filters with differing responses on a stereo signal without having to perfectly match them for a balanced stereo response, to using a VCA to modulate the stereo width at audio rates to add harmonics to a stereo signal, to techniques which haven’t even been invented yet. The inputs and outputs are DC coupled so the LRMSMSLR can be used to get a sum and difference from two CV signals to create complex dynamic CV signals from simple LFOs and envelopes.

Unlike imitators LRMSMSLR uses high quality OPA opamps throughout the signal path for studio quality sound.

• Width: 4hp
• Depth: 37mm
• Current draw:
  +12V: 15mA
  -12V: 15mA
  +5V: 0mA
