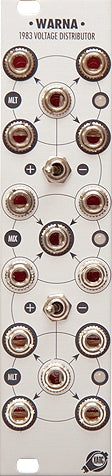

XAOC WARNA II

XAOC WARNA II

XAOC WARNA II

Regular price $90.00
/
  • Free shipping over $99
  • Easy returns
  • Secure payments
  • In Stock
DESCRIPTION

Warna is a very useful utility module that helps you to manage control voltages in the system. Crammed in just 6 hp, there are five normalled sections: two buffered mults, two inverters, and a summing mixer. Each multiple routes the input signal to separated outputs without loss in voltage. Warna is designed for unity gain ? if you apply a specific voltage to any input, it remains the same on the respective outputs. Inverters are hardwired to mults and invert the polarity of the signal applied to them. Both mults are also normalled to the mixer section via inputs. Patching anything to these inputs breaks the normalization.

FEATURES
  • 2 independent 1:4 buffered multiples
  • 2 voltage inverters
  • summing 4:1 mixer section, normalled to multiples
  • unity gain circuit
DETAILS
  • eurorack standard synthesizer module, fully Doepfer compatible
  • 6 hp wide
  • +12/-12V powered
  • current draw: 50 mA
  • backward power protection
  • skiff friendly (25 mm)

USER MANUAL
