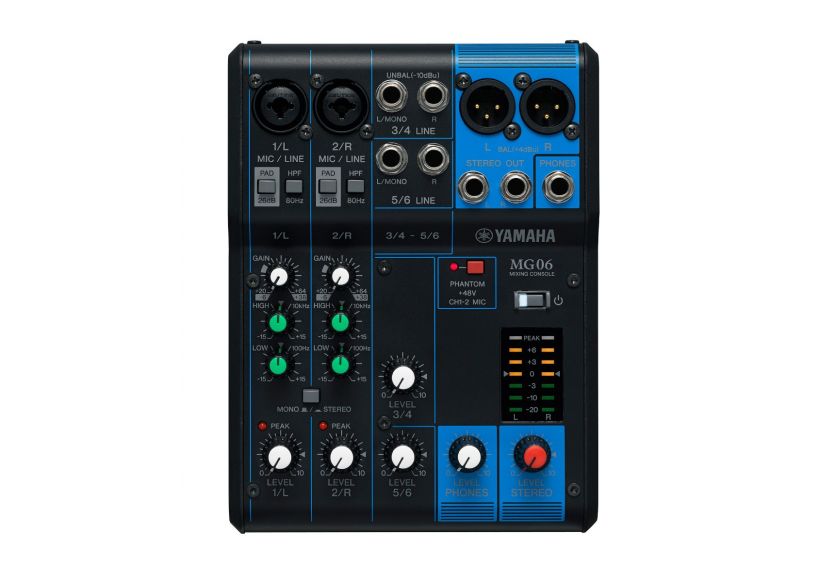

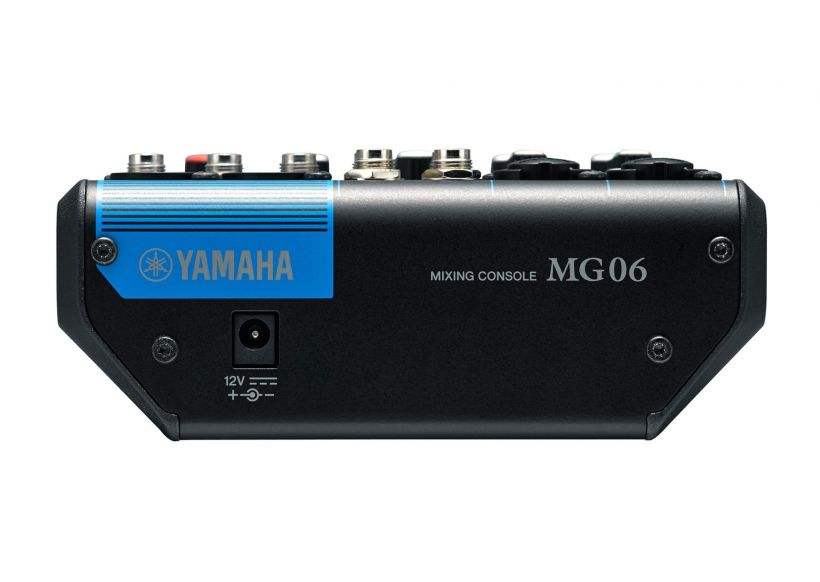

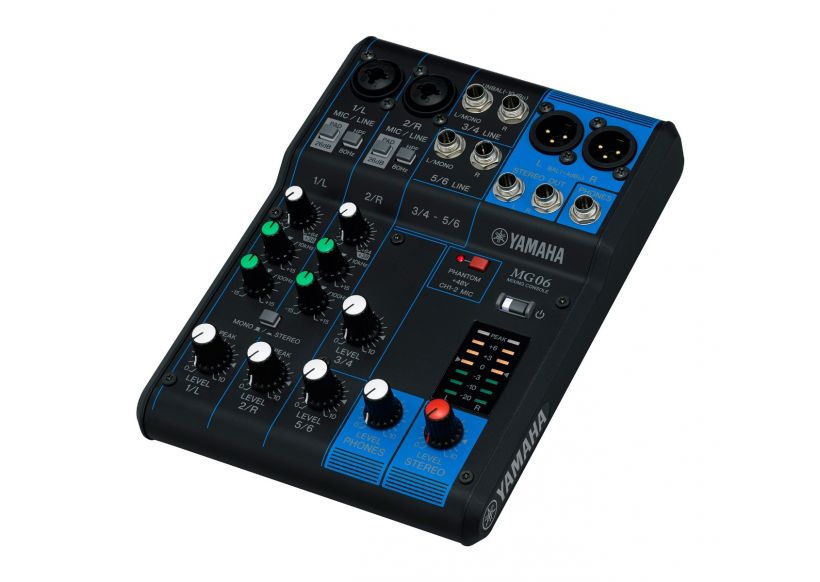

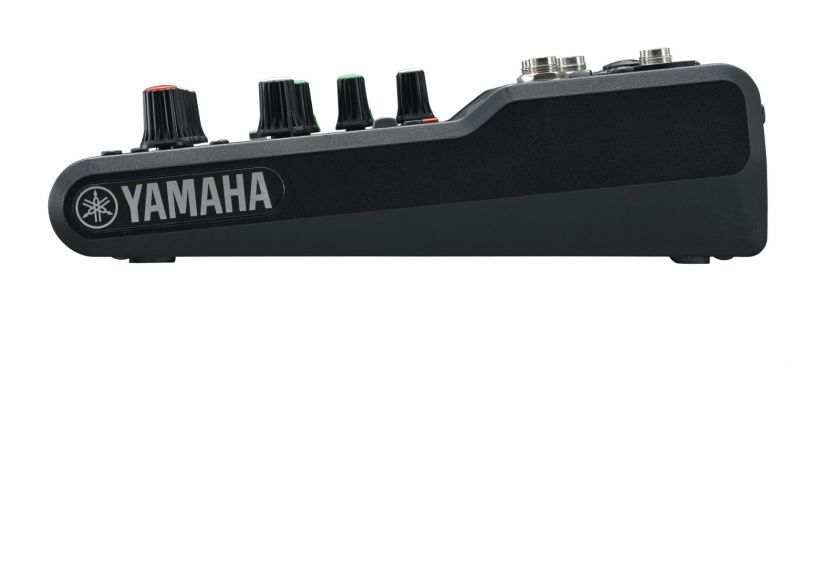

YAMAHA MG06 MIXER
6-Channel Mixing Console
- Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo)
- 1 Stereo Bus
- “D-PRE” mic preamps with an inverted Darlington circuit
- XLR balanced outputs
- PAD switch on mono inputs
- +48V phantom power
- Metal chassis
SPECS
I/O
| Phantom power | +48 V |
INPUT CHANNELS
| Mono[MIC/LINE] | 2 |
| Stereo[LINE] | 2 |
OUTPUT CHANNELS
| STEREO OUT | 2 |
| PHONES | 1 |
BUS
| Stereo: 1 |
INPUT CHANNEL FUNCTION
| PAD | 26 dB (Mono) |
| HPF | 80 Hz, 12 dB/oct (Mono) |
| EQ HIGH | (Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving |
| EQ LOW | (Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving |
| PEAK LED | LED turns on when post EQ signal reaches 3 dB below clipping |
| Level Meter | 2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB] |
TOTAL HARMONIC DISTORTION
| 0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: Min |
FREQUENCY RESPONSE
| +0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min |
HUM & NOISE LEVEL
| Equivalent input noise | -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) |
| Residual output noise | -102 dBu (STEREO OUT, STEREO LEVEL knob: Min) |
CROSSTALK
| -88 dB |
POWER REQUIREMENTS
| PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length = 1.5 m), 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by Yamaha |
POWER CONSUMPTION
| 12 W |
DIMENSIONS
| W | 149 mm (5.9") |
| H | 62 mm (2.4") |
| D | 202 mm (7.9") |
NET WEIGHT
| 0.9 kg (1.98 lbs.) |
ACCESSORIES
| Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A |
OTHERS
| Operating Temperature: 0 to +40˚C |
