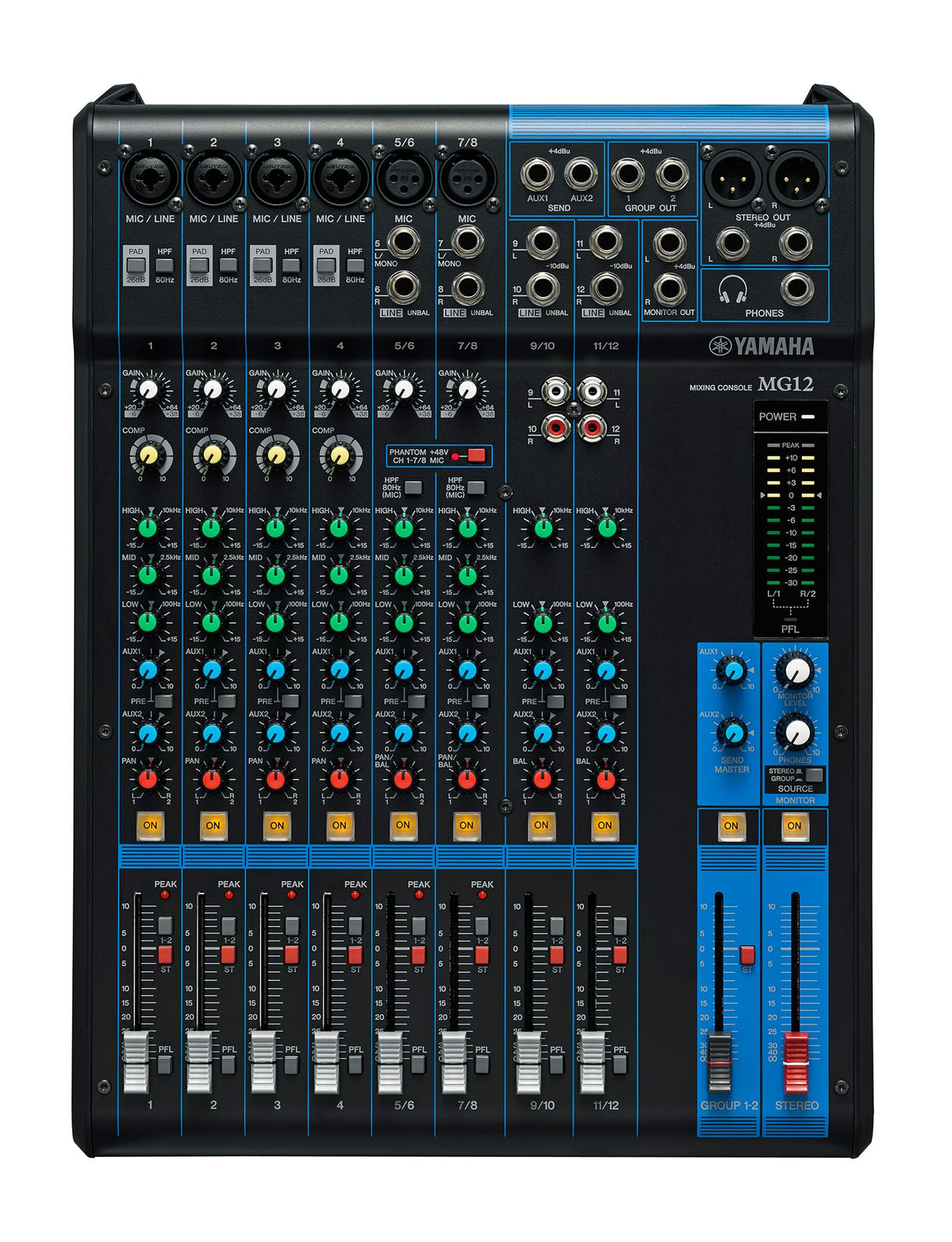

YAMAHA MG12 MIXER
- 12-Channel Mixing Console
- Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo)
- 2 GROUP Buses + 1 Stereo Bus
- 2 AUX
- “D-PRE” mic preamps with an inverted Darlington circuit
- 1-Knob compressors
- PAD switch on mono inputs
- +48V phantom power
- XLR balanced outputs
- Internal universal power supply for world-wide use
- Optional Rack Mount Kit RK-MG12 Available
SPECS
I/O
| Phantom power | +48 V |
INPUT CHANNELS
| Mono[MIC/LINE] | 4 |
| Mono/Stereo[MIC/LINE] | 2 |
| Stereo[LINE] | 2 |
OUTPUT CHANNELS
| STEREO OUT | 2 |
| MONITOR OUT | 1 |
| PHONES | 1 |
| AUX SEND | 2 |
| GROUP OUT | 2 |
BUS
| Stereo: 1, GROUP: 2, AUX: 2 |
INPUT CHANNEL FUNCTION
| PAD | 26 dB (Mono) |
| HPF | 80 Hz, 12 dB/oct (Mono/Stereo: MIC only) |
| COMP | 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec |
| EQ HIGH | Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving |
| EQ MID | Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking |
| EQ LOW | Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving |
| PEAK LED | LED turns on when post EQ signal reaches 3 dB below clipping |
| Level Meter | 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] |
TOTAL HARMONIC DISTORTION
| 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min |
FREQUENCY RESPONSE
| +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min |
HUM & NOISE LEVEL
| Equivalent input noise | -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) |
| Residual output noise | -102 dBu (STEREO OUT, STEREO master fader: Min) |
CROSSTALK
| -78 dB |
POWER REQUIREMENTS
| AC 100 – 240 V, 50 / 60 Hz |
POWER CONSUMPTION
| 22 W |
DIMENSIONS
| W | 308 mm (9.6") |
| H | 118 mm (2.8") |
| D | 422 mm (11.6") |
NET WEIGHT
| 4.0 kg (8.8 lbs.) |
ACCESSORIES
| Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Optional Accessory: Rack-mount kit RK-MG12 |
OTHERS
| Operating Temperature: 0 to +40˚C |
