SOMA LABORATORY ORNAMENT 8

SOMA LABORATORY ORNAMENT 8
SOMA LABORATORY ORNAMENT 8

SOMA LABORATORY ORNAMENT 8

Regular price $799.00
/
  • Free shipping over $99
  • Easy returns
  • Secure payments
  • In Stock

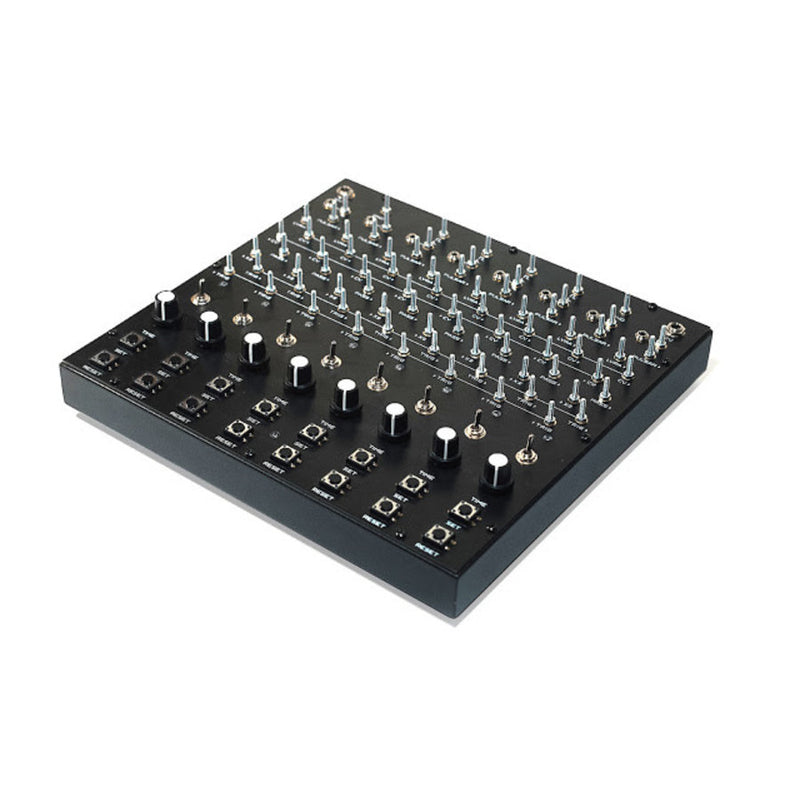

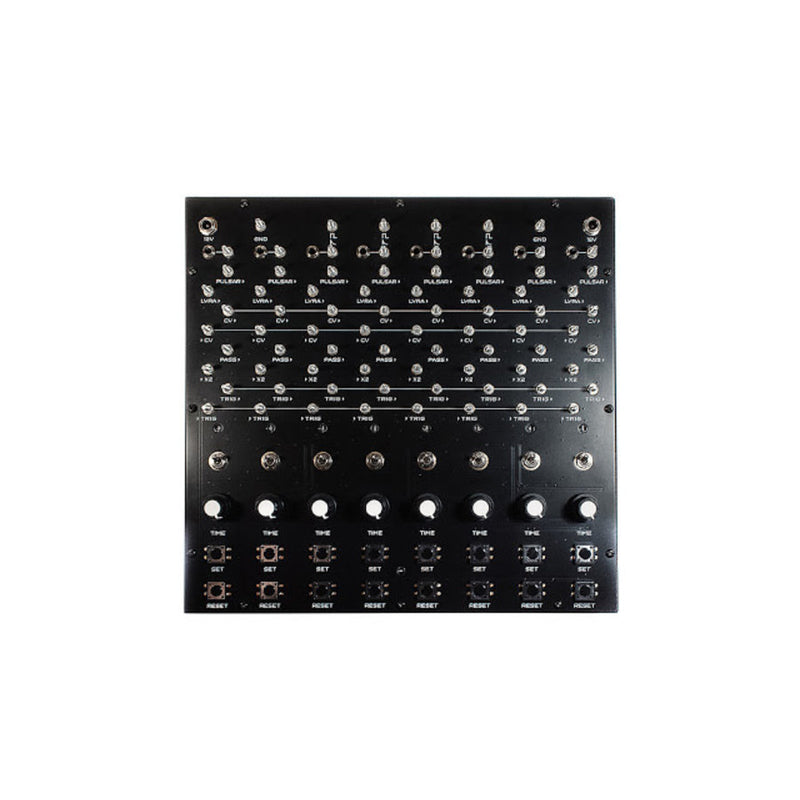

ORNAMENT-8 is an organismic sequencer, or in a broader sense, a synthesizer of behaviour. A unique feature of ORNAMENT is its fully horizontal modular structure that consists of eight equal and independent cells which are special delay lines. It’s in fact an analog computer with a temporal dimension, the behaviour of which is determined by patching and adjusting the temporal properties of each cell involved in the generation of the behaviour.

ORNAMENT can be controlled via Eurorack-compatible Control Voltage. The output of ORNAMENT is also standard CV signals that can control LYRA-8PULSAR-23, Eurorack systems and any equipment that can receive CV, including non-audio ones such as lighting setups or electromechanical installations. For controlling LYRA-8 we developed a special adapter for easy connection to the LYRA sensors while also preserving the ability to play it normally with your fingers.

The adapter attaches to LYRA’s surface using magnets which make installation easy and safe. ORNAMENT, as an organismic sequencer, complements LYRA’s organismic synthesis nature, making them a perfect pair.

ORNAMENT-8 is based on a completely new principle of synthesis of behaviour. Instead of a vertical structure with a tempo generator on top and some memory for storing sequenced events, we have a dynamic equilibrium inside a horizontal structure without any memory, just an infinite “now” that generates the next moment of behaviour. In certain key aspects, it resembles a neural network where there is no difference between “processor” and “memory”, where functions are blurred and all structures are very flexible. Because the ORNAMENT is fully modular, you can connect any number of ORNAMENTs into a single network, creating very complex multi-dimensional structures with the same complex behaviour. For those with philosophical inclinations, ORNAMENT is a playground the size of a box of chocolates where you can study fundamental laws of life and society, going beyond linear logical thinking.

ORNAMENT-8 was designed by Vadim Minkin, the new creative mind who recently joined SOMA laboratory. ORNAMENT is intended to be the first in a line of SOMA sequencers developing new principles of behaviour generation and control.

SPECIFICATIONS:

Number of cells 8
Number of pulse converters 4
Number of 3.5 mm mini-jack Eurorack adapters 8
Number of contacts (inputs and outputs) 78
Input and output voltage range  0‑10 volts *
Minimum cell delay time 50 ms *
Maximum cell delay time 50 seconds *
Maximum cell delay time at> Cv = 0 volts  5 minutes *
Supply voltage 12 volt center-plus
Current Consumption 10-50 ma *
Dimensions 266 x 255 x 54 mm
Weight 1.4 kg

*As with any analog device, there may be a small variance in actual values.



Included:
ORNAMENT-8 — 1 pc.
Power supply 12v 1a — 1 pc.
Male‑male power cord — 1 pc.
65 cm cable with alligator clips — 12 pcs.
30 cm cable with alligator clips — 14 pcs.



Additionally, you can purchase:
Sensor overlay for LYRA‑8 sensors
Optional cable set with alligator clips
